AR7000

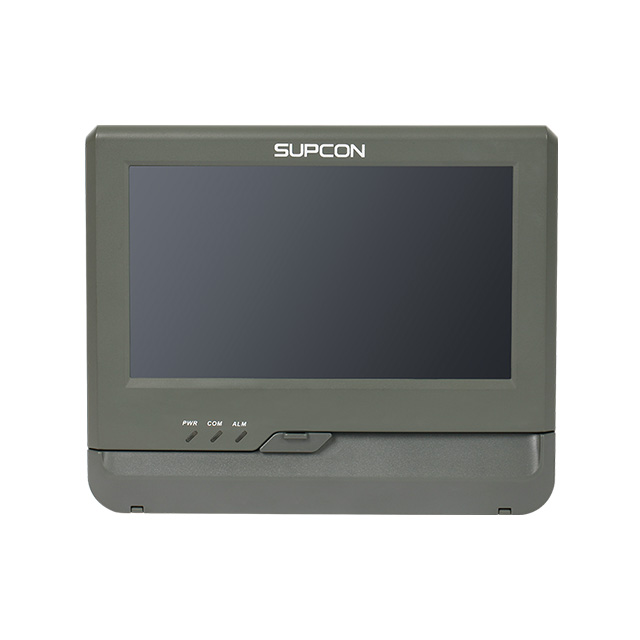

AR7000 is a 7-inch touchscreen paperless recorder with advanced computing. It features 24 AI, 3 DI/PI inputs, 6 AO/16 DO outputs, 1GB NAND Flash storage, RS-232/485 and Ethernet connectivity, IP65 front panel protection, plus 60 built-in functions for flow calculation, temperature-pressure compensation, and statistical analysis.
Product Advantage
AR7000 Paperless Recorder: Advanced Data Acquisition for Industrial Automation
1. Unmatched I/O Flexibility & Precision
This high-channel data logger integrates 24 universal analog inputs (supporting mA/mV/V/TC/RTD at ±0.05% accuracy), 3 switch/pulse inputs, 6 analog outputs, and 16 DO channels. With up to 64 recording points, the AR7000 paperless recorder enables comprehensive monitoring of complex processes while minimizing panel space and equipment costs.
2. Powerful Embedded Calculation Engine
Featuring 60 built-in functions for flow calculation, temperature-pressure compensation, and statistical analysis, this industrial automation recorder eliminates external controllers. Eight accumulation channels generate hourly/shift/daily/monthly reports, while expression-based logic enables custom interlocks, timers, and automatic record control for sophisticated process optimization.
3. High-Speed Performance & Mass Storage
Capture critical transient events with 0.5-second sampling周期 and robust 1GB NAND Flash storage. The data acquisition system supports programmable intervals (0.5s–60hrs), trigger-based auto-start/stop, and USB/Ethernet data transfer—ensuring complete process documentation for analysis and compliance.
4. Seamless IoT Connectivity & Integration
Designed for Industry 4.0, this IoT-ready device offers dual RS-485, RS-232, and Ethernet ports with Modbus protocol. Remote SCADA integration, real-time cloud monitoring, and configuration backup via USB ensure flexible deployment in digitalized industrial environments, reducing maintenance time by 40%.
5. Rugged Design & Measurement Reliability
Engineered for harsh conditions with IP65 front panel protection and -20~60°C operation. The 7-inch touchscreen industrial recorder delivers 120dB common-mode rejection, channel-to-channel isolation, and ±1°C cold-junction compensation accuracy—maintaining ±0.2% stability across temperature variations for dependable long-term performance.
6. Enhanced Security & User Experience
Intuitive 7-inch touchscreen interface with 4-level user authority management prevents unauthorized configuration changes. Features tag logging, 512-event capacity per category (alarm/fault/operation), and smart screen-saver functionality—streamlining operations while securing critical process data.

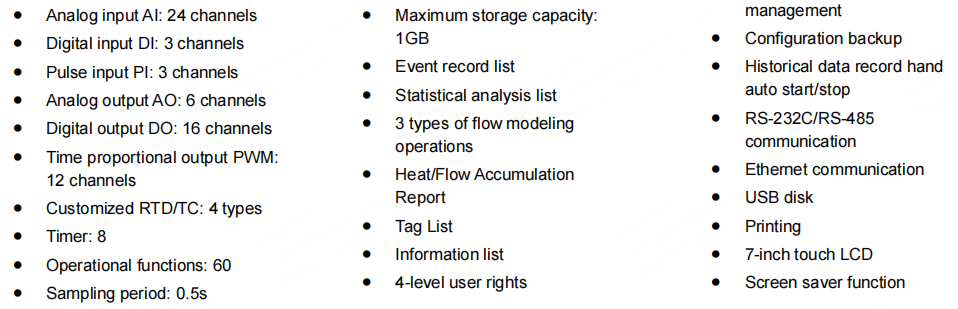

Technical Parameters
Product Uses
Examples of Application：
1. Heat Treatment Furnace Monitoring:
AR7000 monitors 24 temperature zones in industrial furnaces with ±0.05% accuracy. Its 60 built-in functions enable statistical analysis, PID auto-tuning, and compliance reporting—delivering precise thermal profiling in a rugged IP65-rated 7-inch touchscreen.
2. Steam Boiler Energy Management:
Optimizes boiler efficiency using real-time temperature-pressure compensation, 8-channel flow accumulation, and automatic shift/daily reports. Supports ISO 50001 standards through precise steam measurement, leakage detection, and energy consumption analysis for cost reduction.
