SKB

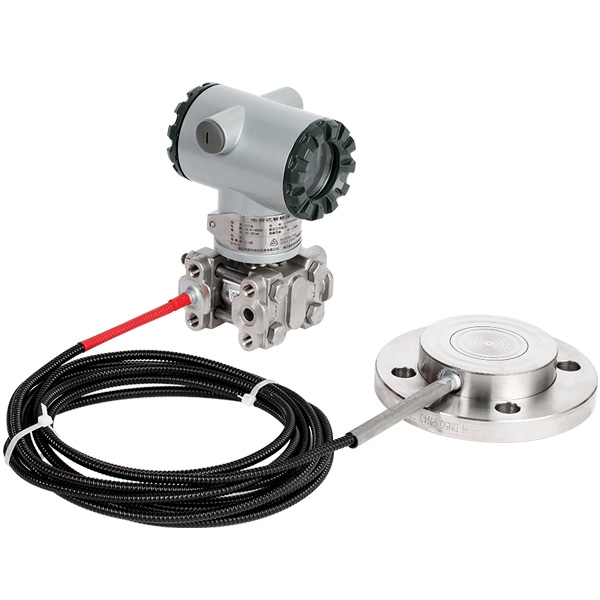

SKB Remote Seal Type Pressure Transmitter is a high-performance single flange remote pressure transmitter designed for demanding process conditions where direct mounting is not suitable. It adopts a mono-silicon pressure sensor combined with a remote diaphragm seal and capillary system, allowing accurate measurement of pressure or liquid level in applications involving high temperature, high vacuum, high viscosity or crystallizing media.
In the SKB design, the process pressure is transmitted through a capillary on the high-pressure (+P) side, while the low-pressure (–P) side is open to ambient pressure. This structure provides effective thermal isolation, corrosion protection and long-term measurement stability, especially in open tanks and harsh industrial environments.
The transmitter supports fast response, remote configuration and self-diagnostics, and is compatible with HART, FF Fieldbus, PROFIBUS PA, APL and other communication protocols. SIL certification is available as an option for safety-critical applications.
Product Advantage
1. "+" P side with capillary connect to process pressure, "-" P side open to ambient pressure.
2. Wetted Materials Isolating diaphragms: 316L SST, 316L SST + Au coating, Monel, Hastelloy® C-276, Tantalum, Titanium, Nickel.
3. Flange material: 316 SST, 304 SST or carbon steel.
4. Housing type: Aluminum alloy/316 SST; Cable Entry: ½-14NPTF or M20×1.5 female thread.
5. Capillary Material: 316 SST; Armor: Stainless steel or stainless steel +PVC coated.
6. Very good reproducibility and long-term stability.
7. High reference accuracy up to ±0.05 %; Turn down up to 100:1.
8. Cost-effective installation, capillary on high-pressure side.

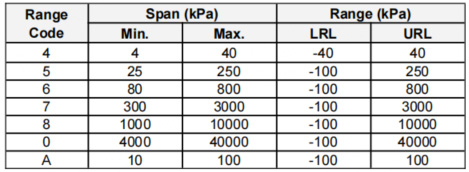

Technical Parameters
Product Uses
The device is used for the following measuring tasks:
1. liquids level, volume or mass measurements in open tank.
2. High process temperatures up to 350 °C (Liquid metal -10~700°C） possible with diaphragm seal mount.
Why Choose SKB Remote Seal Type Pressure Transmitter
Designed specifically for remote seal applications, not a generic flange transmitter
Optimized for level measurement and harsh process conditions
Proven mono-silicon sensor technology with industrial-grade stability
Flexible material and configuration options for complex engineering projects
