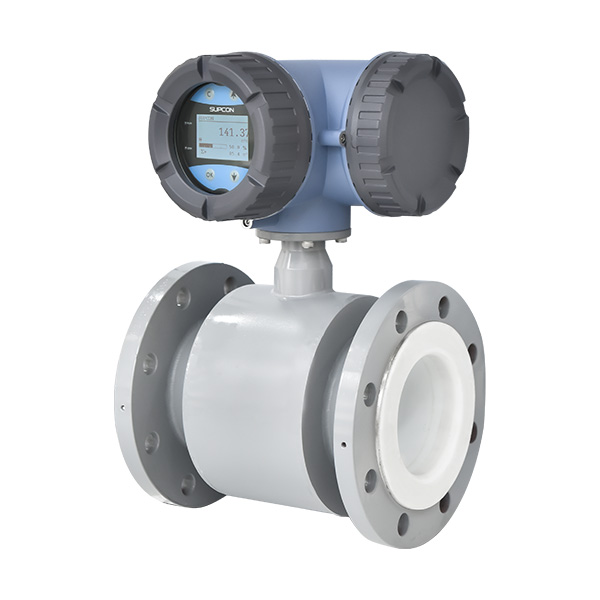

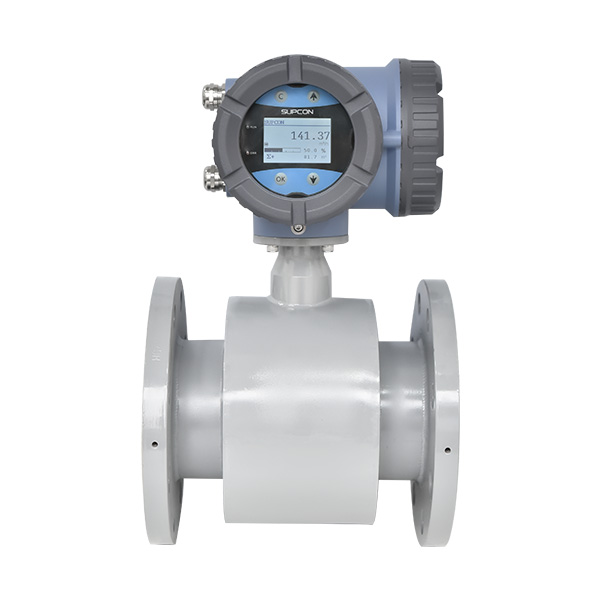

SFE910
The SFE910 electromagnetic flowmeter represents a high-precision, highly reliable product developed and continuous upgrades. The flowmeter achieves advanced standards in excitation technology, lining technology, and intelligent technology. It is suitable for measuring conductive media such as acid, alkali, salt solutions, mineral slurries, pulp, and wastewater. Applications span flow measurement across industries including metallurgy, chemical, pharmaceuticals, papermaking, environmental protection, petroleum, light textiles, and food production, as well as water and wast water.
Product Advantage
1. Integrated welded structure with excellent sealing performance.
2. Simple and reliable structure with no moving parts; almost no pressure loss.
3. Highly responsive with a linear output signal to flow and wide rangeability.
4. Low-frequency rectangular wave excitation ensures good anti-interference performance and stable zero point.
5. Comprehensive self-diagnostic functions compliant with NAMUR NE107 standard.
6. Converters are highly interchangeable and achieve accuracy without recalibration.
7. Features parameter setting storage and key parameter modification logging.
8. Low installation requirements: upstream straight pipe ≥ 5D, downstream ≥ 3D (D: inner diameter).
9. Empty pipe alarm prevents measurement errors due to data fluctuations.
10. Only the lining and electrodes contact the medium, suitable for wear/corrosion-resistant applications
11. High accuracy with minimal interference from velocity distribution, pressure, or temperature; bidirectional measurement.
12. Low sensor power consumption; full instrument <10VA (DC 10W), independent of sensor size.
13. L-type dual-chamber head design for easy installation, parameter viewing, and data reading.
14. Bus communication including Ethernet-APL/HART/RS485.
15. Integrated light-sensitive buttons for parameter modification without opening the housing, particularly suitable for explosion-proof environments.

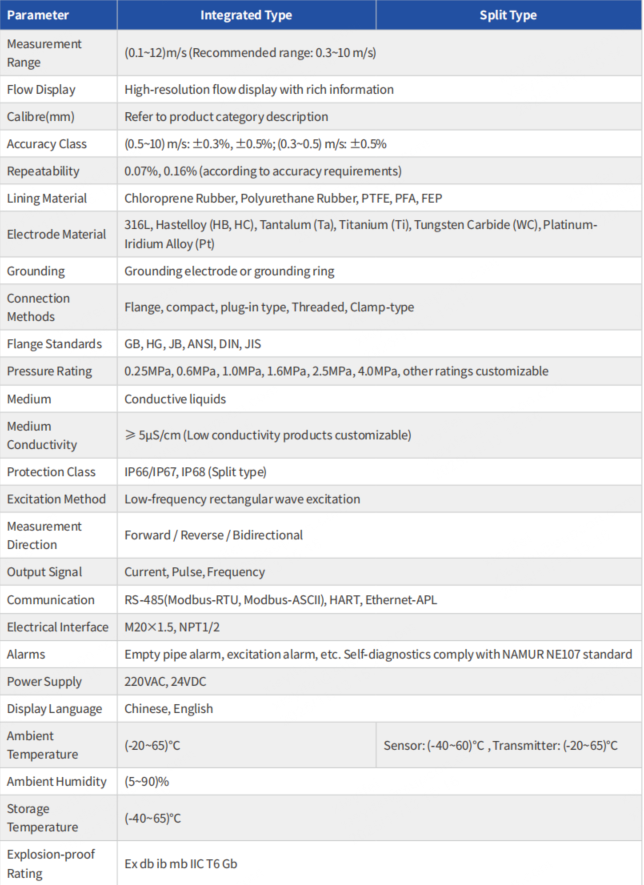

Technical Parameters
Product Uses
1. The bidirectional measuring principle is virtually independent of pressure, density, temperature and viscosity.
2. Specially for chemical and process applications with corrosive liquids.
