HD5500
HD5500 safety barrier use optical, electrical, magnetic isolation technology to isolate the power supply, input signal and output signal , realize digital / analog signal isolated transmission between field instruments and control room equipment ,it is the ideal isolation devices between the field instrument and control room equipment . In line with the requirements of intrinsic safety explosion-proof, with strict isolation and energy limitation capabilities, can be installed in hazardous places with intrinsically safe equipment to be an intrinsically safe explosion-proof system, through the internal voltage and current limiting circuits to limit the electrical energy of the hazardous zone, so as to ensure the safety of the hazardous places.
Product Advantage
1. High precision, low temperature drift, leading reliability performance, with intelligent alarm function, convenient for on-site inspection.
2. Ultra-thin design 12.5mm, DIN-rail mounting, power via DIN-rail , baseboard mounting
3. Low-power-consumption H-bridge driven isolated power supply with high efficiency up to 90%, and output adaptive circuitry to save 40% power consumption
4. CCC，Marine certificates，SIL2/3 certificates, CE certificates, IECEx/ATEX certificates

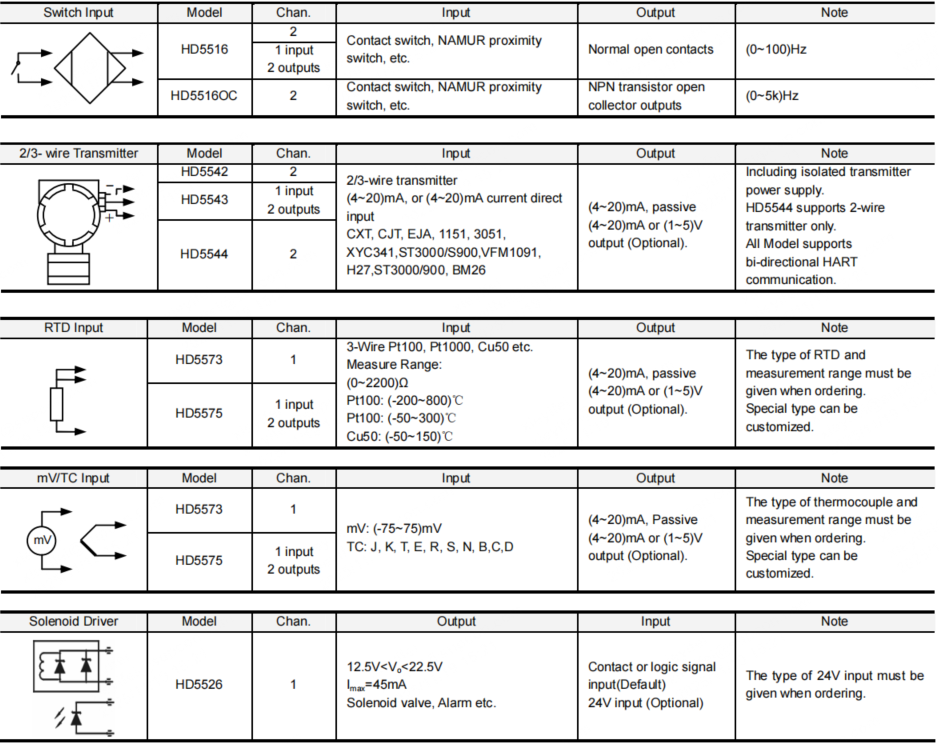

Technical Parameters
Product Uses
HD5500 installed in hazardous places with intrinsically safe equipment to be an intrinsically safe explosion-proof system.
HD5500 safety barrier use optical, electrical, magnetic isolation technology to isolate the power supply, input signal and output signal , realize digital / analog signal isolated transmission between field instruments and control room equipment ,it is the ideal isolation devices between the field instrument and control room equipment . In line with the requirements of intrinsic safety explosion-proof, with strict isolation and energy limitation capabilities, can be installed in hazardous places with intrinsically safe equipment to be an intrinsically safe explosion-proof system, through the internal voltage and current limiting circuits to limit the electrical energy of the hazardous zone, so as to ensure the safety of the hazardous places.
Product Advantage
1. High precision, low temperature drift, leading reliability performance, with intelligent alarm function, convenient for on-site inspection.
2. Ultra-thin design 12.5mm, DIN-rail mounting, power via DIN-rail , baseboard mounting
3. Low-power-consumption H-bridge driven isolated power supply with high efficiency up to 90%, and output adaptive circuitry to save 40% power consumption
4. CCC，Marine certificates，SIL2/3 certificates, CE certificates, IECEx/ATEX certificates
Technical Parameters
Product Uses
HD5500 installed in hazardous places with intrinsically safe equipment to be an intrinsically safe explosion-proof system.
