SFM800

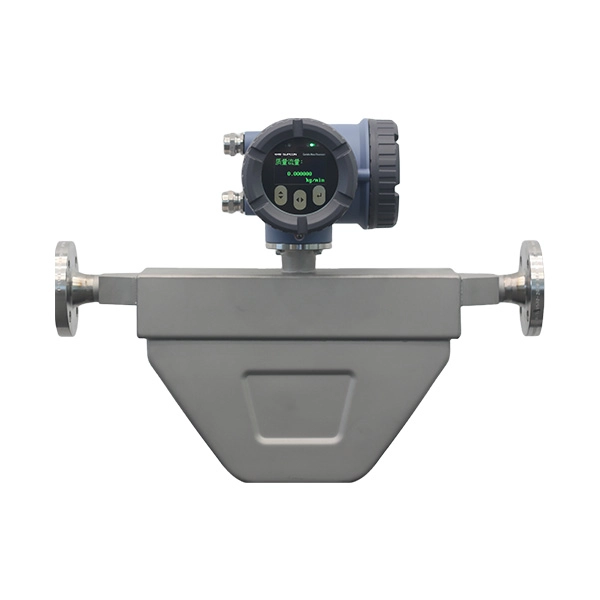

The SFM800 Coriolis mass flow meter is a top-tier, high-accuracy flow and density measurement solution purpose-built for critical industrial flow metering applications, including custody transfer and precision process control. Engineered to meet stringent global standards from North America, the European Union, and China, this compact Coriolis flow transmitter delivers unmatched stability for liquid, gas, slurry, and two-phase flow measurement, with versatile configurations to support extreme process conditions. Its multi-parameter measurement capability delivers real-time mass flow, volume flow, density, and temperature data in a single device, eliminating the need for multiple sensing instruments for industrial process operators.
With a liquid mass flow accuracy as high as ±0.05% and exceptional repeatability, the high-precision Coriolis flow meter delivers consistent, reliable measurements over its full service life, supporting tight process control and reduced operational waste for industrial facilities.
Validated to meet global fiscal metering requirements, this custody transfer mass flow meter delivers elite measurement performance for critical commercial transactions, ensuring traceable, compliant readings for oil & gas, chemical, and bulk liquid transfer operations.
The device offers a wide range of configurations, including high-temperature, high-pressure, cryogenic, hygienic, and anti-corrosion variants, with a compact, self-draining, cleanable design that fits seamlessly into sanitary and aggressive process environments.
Supporting multiple industrial I/O communication protocols, the flow meter integrates easily with existing process control systems, while its multi-measurement modules deliver synchronized data for complex, dynamic process conditions.
Specification | Top Grade | Advanced | Standard | General |
Mass Flow Accuracy | ±0.05% | ±0.10% | ±0.15% | ±0.20% |
Mass Flow Repeatability | ±0.025% | ±0.05% | ±0.075% | ±0.10% |
Volume Flow Accuracy | ±0.05% | ±0.10% | ±0.15% | ±0.20% |
Volume Flow Repeatability | ±0.025% | ±0.05% | ±0.075% | ±0.10% |
Specification | Top Grade | Standard | General |
Mass Flow Accuracy | ±0.25% | ±0.50% | ±1.00% |
Mass Flow Repeatability | ±0.15% | ±0.25% | ±0.50% |
Specification | Unit | Top Grade | Standard | General |
Density Accuracy | kg/m³ | ±0.50 | ±1.00 | ±3.00 |
Density Repeatability | kg/m³ | ±0.25 | ±0.50 | ±1.50 |
Density Range | kg/m³ | 0~5000 | 0~5000 | 0~5000 |
Optimized for fiscal grade mass flow metering in oil & gas midstream operations, bulk liquid terminal transfers, and commercial gas distribution, with traceable accuracy to meet global regulatory requirements for commercial transactions.
Delivers stable, accurate measurement for upstream production, midstream transportation, and downstream refining applications, including cryogenic liquefied gas measurement, high-pressure pipeline flow monitoring, and batch processing.
Supports precise dosing, blending, and batch processing of corrosive chemicals, solvents, and specialty materials, with anti-corrosion wetted material options and wide operating condition ranges for aggressive process environments.
Features a self-draining, cleanable sanitary design that meets strict hygienic standards, making it ideal for precise batch dosing, product density monitoring, and flow measurement in sterile manufacturing processes.
The SFM800 industrial mass flow meter requires no upstream or downstream straight pipe runs, eliminating the need for extensive piping modifications and enabling flexible installation in tight plant spaces. Its compact footprint fits standard process line configurations, with multiple flange size options to match existing infrastructure.
The device features a user-friendly interface for on-site configuration, with support for multiple industrial communication protocols to enable seamless integration with DCS, PLC, and SCADA systems. Pre-calibrated settings for common applications reduce setup time and minimize commissioning delays.
With no moving parts, the flow meter requires minimal routine maintenance, with no regular calibration needed in most standard applications. We provide full lifecycle after-sales support, including on-site service and technical assistance, to maximize uptime for your operation.
