SKG/SKA

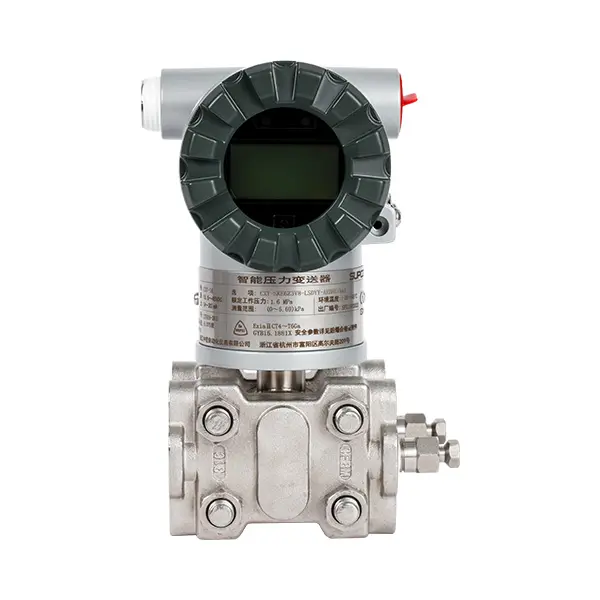

Our SKG monosilicon gauge pressure transmitter and SKA absolute pressure transmitter are engineered for reliable, high-precision pressure and level monitoring in demanding industrial environments. Built with industry-leading mono-silicon sensing technology, these transmitters deliver fast response, real-time remote setting, and intelligent self-diagnosis for liquid, gas, and steam media. Compatible with HART, FF fieldbus, PROFIBUS PA, and APL communication protocols, our CXT series supports optional TÜV SIL3 certification, making it ideal for critical process operations. Designed for tank level monitoring and continuous pipeline pressure tracking, this series offers fully customizable configurations to meet unique site requirements.
To adapt to corrosive, high-temperature, and abrasive media, we offer industry-leading wetted material options. Isolating diaphragms are available in 316L SST, Hastelloy® C-276, 316L SST + Au coating, Tantalum, and Monel 400, with matching sensor body materials. O-rings are available in FKM and PTFE, with fill fluid options including silicone oil and inert oil for specialized applications.
The transmitter housing is available in corrosion-resistant aluminum or 316 stainless steel, with cable entry options of ½-14NPT or M20×1.5 female thread to fit global standards. Rated IP66/IP67, the device delivers reliable performance in dust-heavy, high-humidity, and outdoor harsh environments, with a strict "no live opening" safety design for hazardous area operation.
With 8+ range codes, the transmitter supports span ranges from 0.4 kPa to 40000 kPa for gauge pressure, and 4 kPa to 3000 kPa for absolute pressure, with over-range protection up to 60 MPa to prevent sensor damage from pressure spikes.
Our industrial pressure monitoring transmitter holds full global certifications, including CE, EAC, CCS, TÜV SIL3, and ATEX/IEC/NEPSI explosion-proof certificates, ensuring compliance with regional safety standards across North America, Europe, Asia, and the Middle East.
Range Code | Span (kPa) | Range URL (kPa) | Over Range (MPa) | ||
Min. | Max. | LRL | URL | ||
4 | 0.4 | 40 | -40 | 40 | 0.2 |
5 | 2.5 | 250 | -100 | 250 | 0.75 |
6 | 8 | 800 | -100 | 800 | 2.4 |
7 | 30 | 3000 | -100 | 3000 | 9 |
8 | 100 | 10000 | -100 | 10000 | 15 |
9 | 200 | 20000 | -100 | 20000 | 60 |
0 | 400 | 40000 | -100 | 40000 | 60 |
A | 1 | 100 | -100 | 100 | 0.5 |
Code | Span (kPa abs) | Range (kPa abs) | Over Range (MPa) | ||
Min. | Max. | LRL | URL | ||
4 | 4 | 40 | 0 | 40 | 0.12 |
5 | 25 | 250 | 0 | 250 | 0.75 |
7 | 30 | 3000 | 0 | 3000 | 9 |
Our tank level monitoring pressure transmitter is widely used across critical industrial sectors:
Oil & Gas: Crude oil storage tank level monitoring, pipeline pressure tracking, wellhead pressure measurement
Water & Wastewater: Pump discharge pressure monitoring, filter tank level tracking, distribution network pressure management
Chemical Processing: Corrosive media pressure and level monitoring in reactors and storage tanks
Power Generation: Boiler steam pressure monitoring, feedwater system pressure tracking
Food & Beverage: Hygienic liquid storage tank level monitoring and CIP system pressure tracking
Ensure the process connector matches your pipeline or tank specifications, with thread sealant applied to ½-14NPT or M20×1.5 connections. Mount the transmitter at or below the lowest measuring point for liquid level applications to avoid gas bubble interference, with proper grounding for hazardous area installations.
Use a HART communicator or remote tool to set measuring ranges, perform zero calibration, and configure alarms. The built-in self-diagnosis system provides real-time fault alerts to minimize downtime. The modular design enables simplified on-site maintenance, with replaceable sensing and electronic modules without full device removal. We offer a 12-month standard warranty, with full lifecycle after-sales support.
