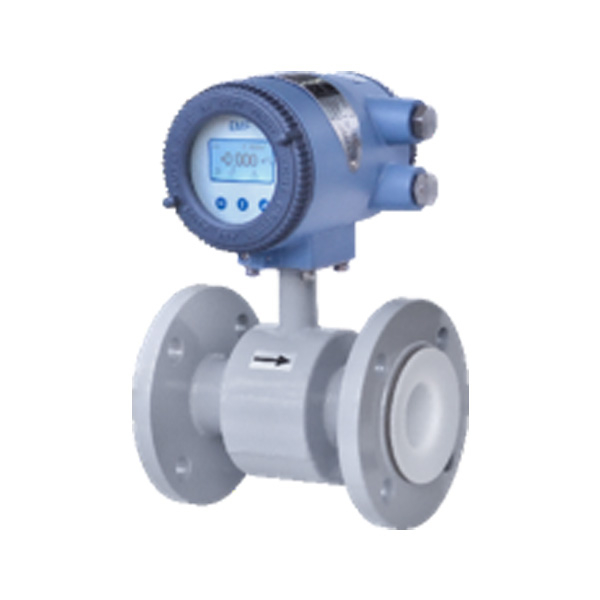

EMF89
The EMF89 electromagnetic flowmeter represents a high-precision, highly reliable product . The flowmeter achieves advanced standards in excitation technology, lining technology, and intelligent technology. It is suitable for measuring conductive media such as acid, alkali, salt solutions, mineral slurries, pulp, and wastewater. Applications span flow measurement across industries including metallurgy, chemical, pharmaceuticals, papermaking, environmental protection, petroleum, light textiles, and food production, as well as water and wast water.
Product Advantage
1. Utilises tri-state wave excitation for stable, reliable zero-point performance.
2. Features excitation fault alarm and electrode fault detection functions.
3. Converters offer excellent interchangeability, achieving accuracy without requiring recalibration against actual flow.
4. No flow obstructions or moving parts within the measuring tube; identical bore diameter to pipeline ensures zero pressure loss.
5. Minimal installation requirements: upstream straight pipe length ≥ 5D, downstream ≥ 3D (where D is the instrument's internal diameter).
6. Integrated model features light-sensitive buttons for parameter modification without opening the housing, particularly suitable for explosion-proof environments.
7. Features an empty pipe alarm function, automatically detecting and resetting instantaneous flow to zero whilst triggering an alarm to prevent measurement errors caused by flow meter data fluctuations due to empty pipe interference.
8. Only the instrument lining and electrodes come into contact with the measured medium, meeting the demands of more wear-resistant and corrosion-resistant applications.
9. High measurement accuracy with minimal interference from factors such as velocity distribution, pressure, and temperature, and capable of bidirectional measurement.

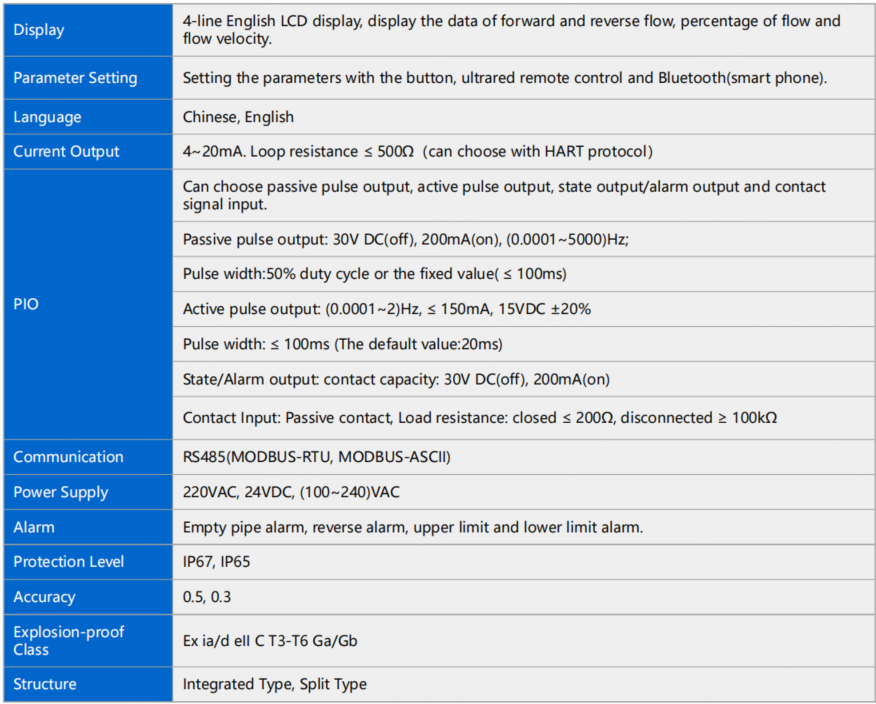

Technical Parameters
Product Uses
1. The bidirectional measuring principle is virtually independent of pressure, density, temperature and viscosity
2. Specially for chemical and process applications with corrosive liquids
