LUGB

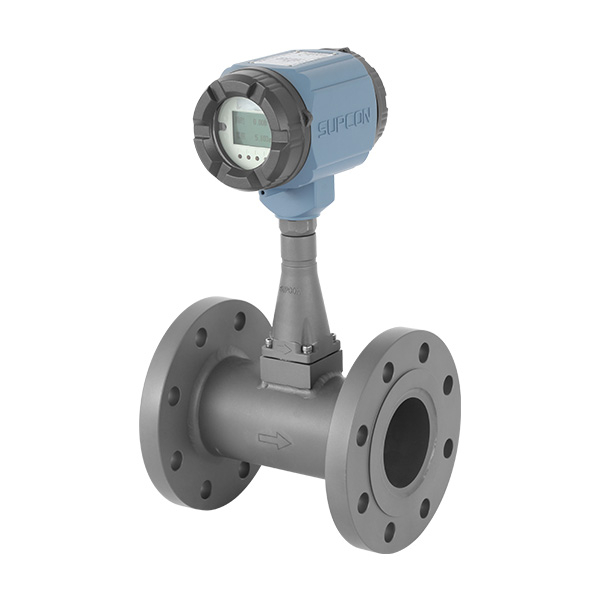

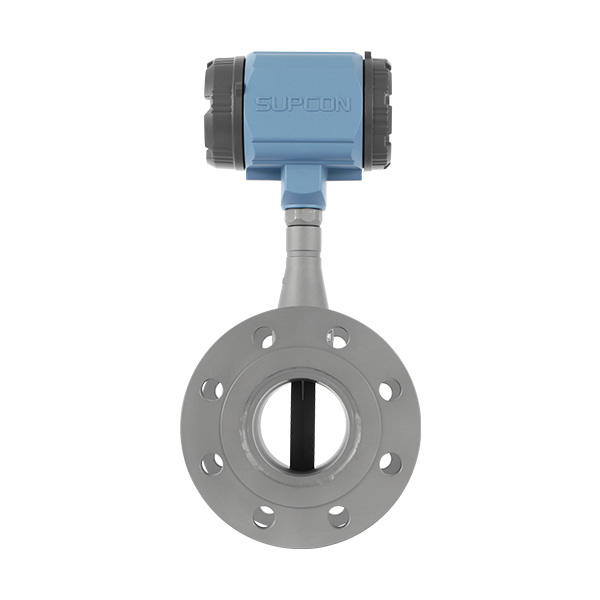

LUGB Vortex flowmeter is a kind of flowmeter based on the principle of Karman vortex street, used to measure the flow of liquid, gas and steam, as well as turbid liquid containing tiny particles and impurities. It is widely applied in petroleum, chemical, pharmaceutical, papermaking, metallurgy, electric power, environmental protection, food and other industries.
Product Advantage
1. High Accuracy and Repeatability: Provides precise measurement with typical accuracies of ±0.5% to ±1% of reading, ensuring reliable and consistent data over time.
2. No Moving Parts: Features a robust design with no mechanical components that wear out, resulting in minimal maintenance requirements and long service life.
3. Wide Turndown Ratio: Offers a broad measuring range (typically 10:1 to 20:1), allowing it to accurately measure both low and high flow rates within the same pipe.
4. Versatile Fluid Compatibility: Suitable for measuring liquids, gases, and steam without requiring different sensor configurations, making it highly adaptable across various applications.
5. Excellent Long-Term Stability: Maintains calibration and performance over extended periods due to its non-mechanical sensing principle, reducing the need for frequent recalibration.
6. Easy Installation and Integration: Can be installed in any pipe orientation with minimal straight-run requirements, and easily integrates with modern digital control systems using standard output signals.

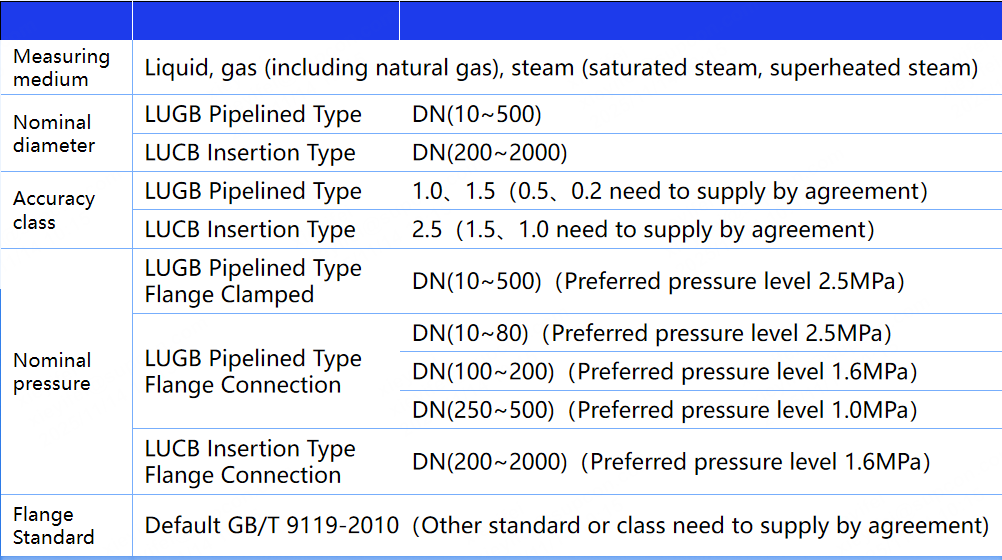

Technical Parameters
Product Uses
1. Steam Measurement in Power Generation and Industrial Boilers: Ideal for monitoring saturated and superheated steam flow in power plants, district heating systems, and process steam distribution networks, providing accurate energy consumption data for billing and efficiency optimization.
2. Compressed Air and Industrial Gas Monitoring: Widely used for measuring compressed air usage in manufacturing facilities to identify leaks and optimize energy costs, as well as for natural gas flow measurement in burner control and sub-metering applications.
3.Process Fluid Measurement in Chemical & Petrochemical Plants: Reliable for measuring various liquids and gases in refining and chemical processing, including hydrocarbons, solvents, and feedstock flows, where robust performance and low maintenance are critical.
