SKD

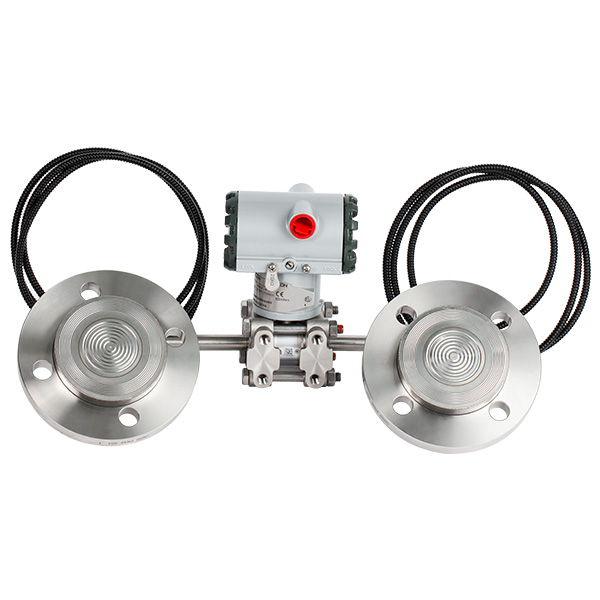

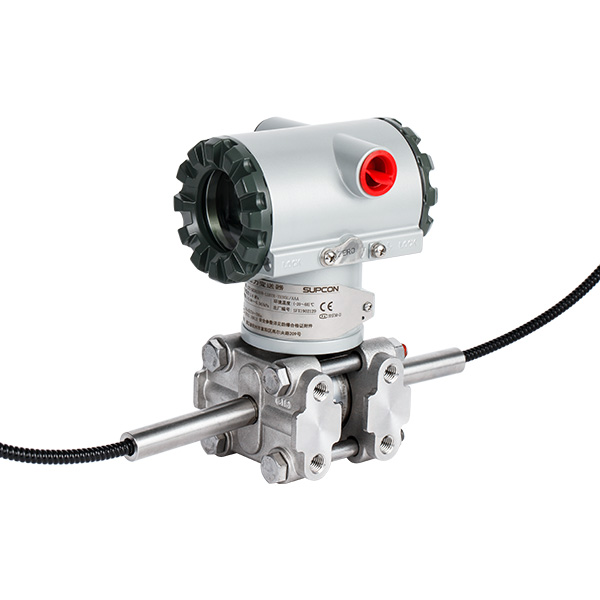

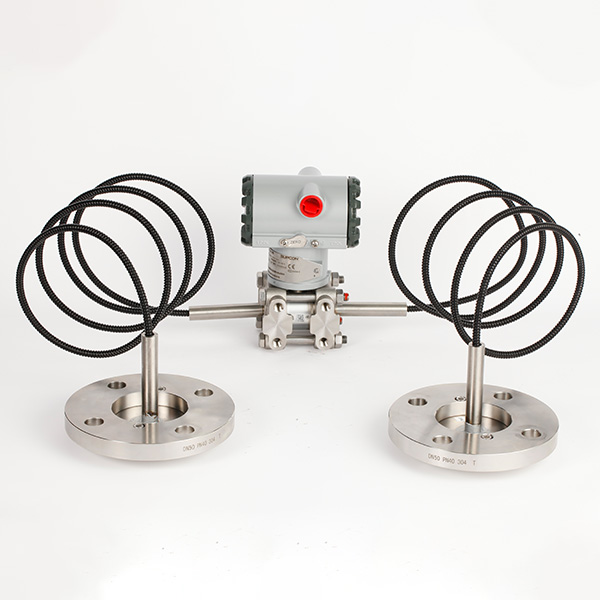

SKD high performance double flange differential pressure transmitter adopts mono-silicon pressure sensor, suitable for measuring flow, liquid level, density and pressure in the process . The transmitter has the functions of fast response, remote setting and self-diagnosis. CXT series products provide HART, FF field bus and PROFIBUS PA, APL or customized communication protocols, optional with SIL certification.
1. Wetted Materials：Isolating diaphragms: 316LSST, 316LSST+Gold plated, Monel, Hastelloy® C-276, Tantalum, Titanium, Nickel.
2. Flange material: 316 SST, 304 SST or carbon steel.
3. Filled fluid: Silicone oil, high temperature oil, low temperature oil, inert oil, food oil.
4. Housing type: Aluminum alloy/316 SST；Cable Entry：½-14NPT or M20×1.5 female thread；IP66/67.
5. Process Connector：Flange type conforms to ANSI, DIN,HG 20592, HG 20615 and GB.
6. Diaphragm Extension：0mm, 50mm, 100mm, 150mm or 200mm.
7. On 50A(2B) pipe using mounting bracket, Process-wetted use flange mounting, flange clamping method (Wafer type).
8. Capillary Material：316 SST；Armor of Capillary：Stainless steel sheathed or stainless steel sheathed +PVC coated.
The device is used for the following measuring tasks:
1. Liquids Level, volume or mass measurements in open/closed tank
2.High process temperatures up to 350 °C (Liquid metal -10~700°C） possible with diaphragm seal mount
3. Flow measurement (volume flow or mass flow) in gases, vapors with temperature/pressure sensor or liquids
