SKP/SKH
Product Introduction

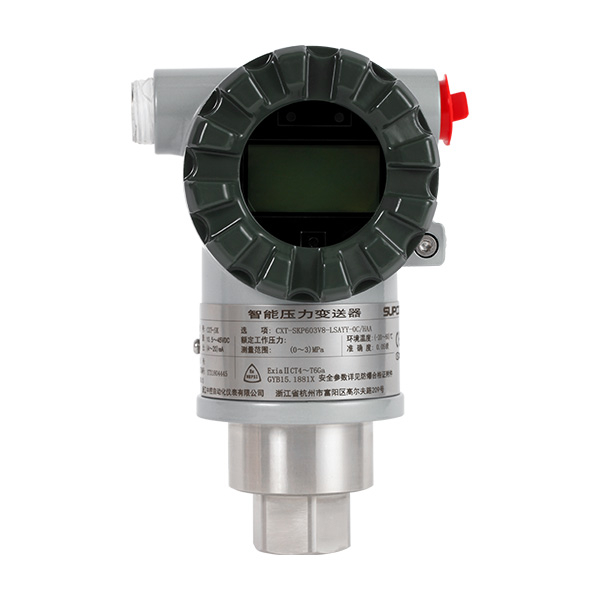

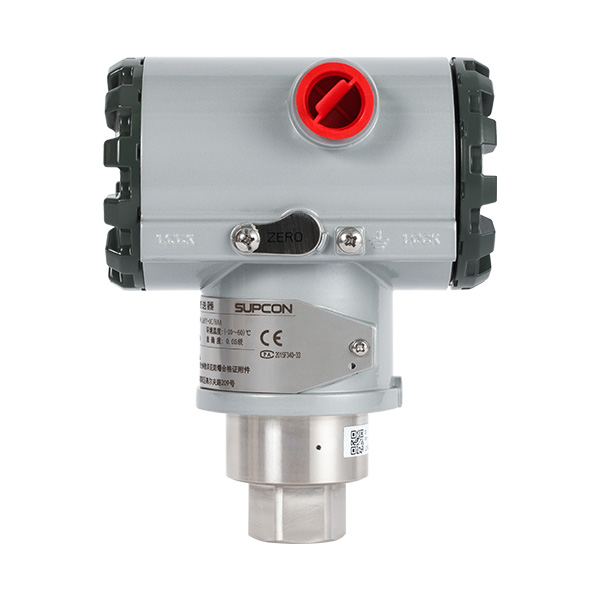

The SKP（Gauge Pressure)/SKH（Abs. Pressure) high performance pressure transmitter uses a mono-silicon pressure sensor for measuring the pressure of liquids, gases or vapors. The transmitter has fast response, remote setting and self-diagnosis functions. Through process converters, we offer high precision sanitary and paper make process specific pressure transmitters. High precision hygienic pressure transmitter with hygienic connector for food , chemical and pharmaceutical applications. High precision papermaking pressure transmitter, with a special pressure sensing structure, to solve the problem of high viscosity medium easy to jam. CXT series products provide HART, FF fieldbus, PROFIBUS PA, APL protocols, and optional with SIL certification.
Product Advantage
1. Wetted Materials: Isolating diaphragms: 316L SST, Hastelloy® C-276, 316L SST+Gold plated, Tantalum.
2. Sensor body: 316 SST.
3. Filled fluid: Silicone oil, Inert oil, Food oil.
4. Housing: Aluminum/stainless steel 316; Cable Entry: ½-14NPT or M20×1.5 female thread; IP66/67.
5. Process Connector: ½-14NPTF, M20×1.5 male, can also be converted to ½-14NPTM, G1/2 Male through the process adapter. M20*1.5 male + female thread loose fitting with Ø14 welded pipe, clamp type DN25/1" (PN4.0MPa /Class300LB), clamp type DN40/1½" (PN4.0MPa /Class300LB), clamp type DN50/2" (PN2.5MPa /Class150LB), G1" front diaphragm, G1/2" front diaphragm, M44 x 1.25 thread fitting.
6. 2" pipe mounted flat bracket, carbon steel or 304 stainless steel materia.

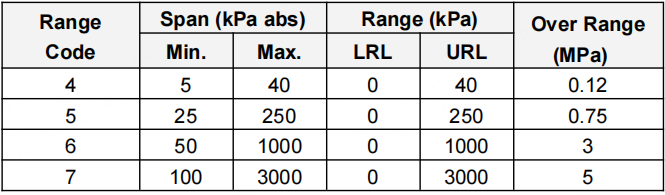

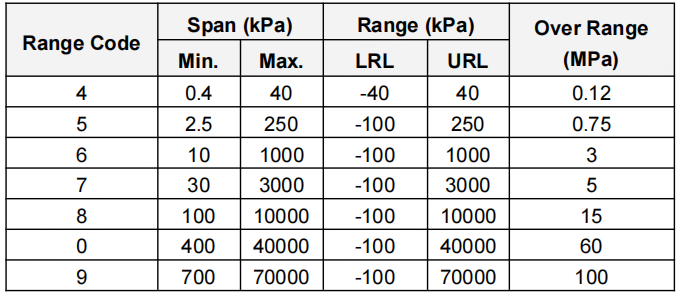

Technical Parameters
Product Uses
1. Level, pressure measurements in gas or liquids.
2. Pressure or Abs. pressure monitoring, e.g. of pipe or tank.
