SKQ/SKR

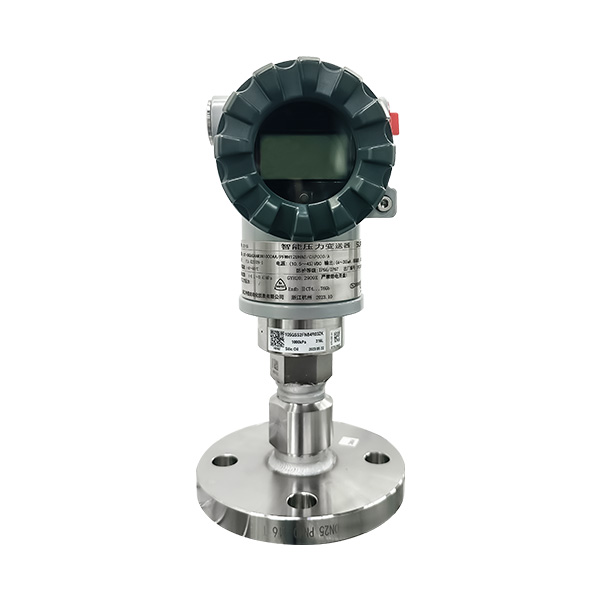

SKQ/SKR high performance diaphragm seal pressure transmitter adopts mono-silicon pressure sensor, suitable to measure process pressure or liquid level with high and low temperature, high vacuum, high viscosity and easy to crystallise medium. The transmitter has the functions of fast response, remote setting and self-diagnosis. CXT series products provide HART, FF field bus and PROFIBUS PA, APL and other communication protocols, optional with SIL safety certification.
Product Advantage
1. Wetted Materials:Isolating diaphragms: 316L SST, 316L SST+Gold plated, Monel, Hastelloy® C-276, Tantalum, Titanium, Nickel.
2. Mounting flange material: 316 SST, 304 SST or carbon steel.
3. Filled fluid: Silicone oil.
4. Housing: Aluminum/stainless steel 316; Cable Entry: ½-14NPT or M20×1.5 female thread; IP66/67.
5. Process Connector: Flange size to ANSI, DIN, GB and HG 20592, HG 20615.
6. Diaphragm Extension: 0mm, 50mm, 100mm, 150mm or 200mm, indicate when placing an order

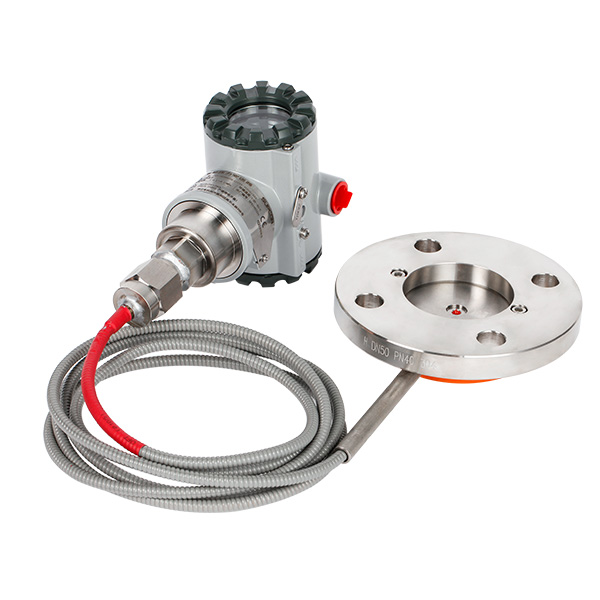

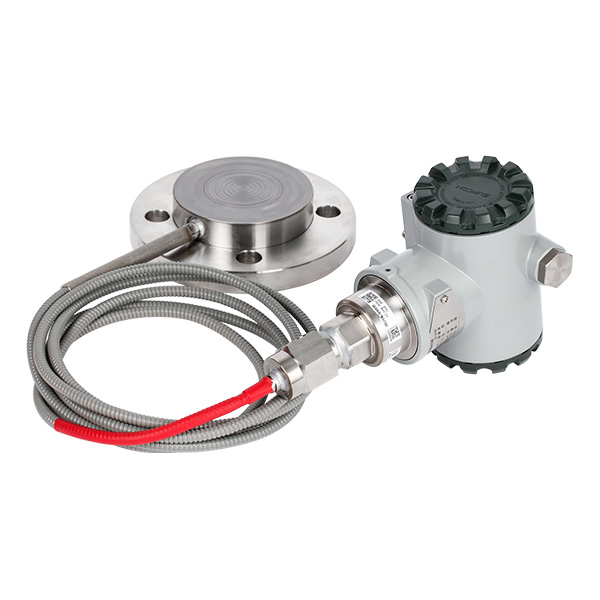

7. Mounting: Without capillary, flange installation; With capillary: Transmitter directly installed on 50A (2B) process pipe, installed with U-bolt, process installed with flange.
8. Capillary Material:316 SST；Armor of Capillary: Stainless steel or stainless steel+PVC coated.

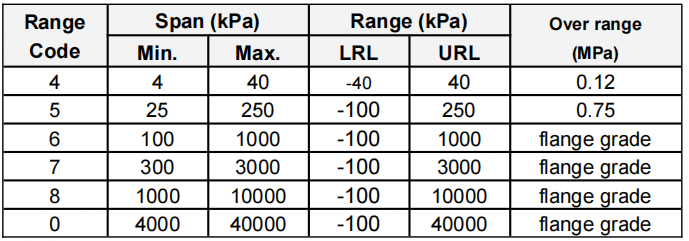

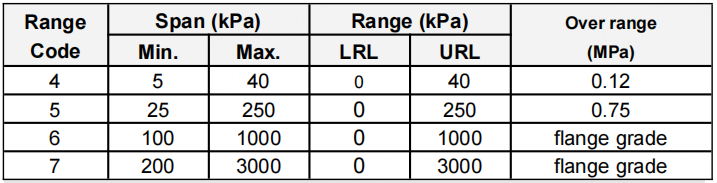

Technical Parameters
Product Uses
1.Level, pressure measurements in gas or liquids
2. Pressure or Abs. pressure monitoring, e.g. of pipe or tank
