SKE

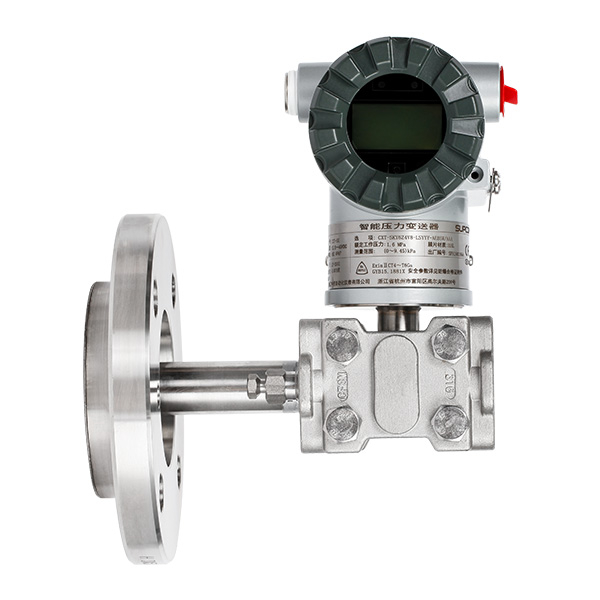

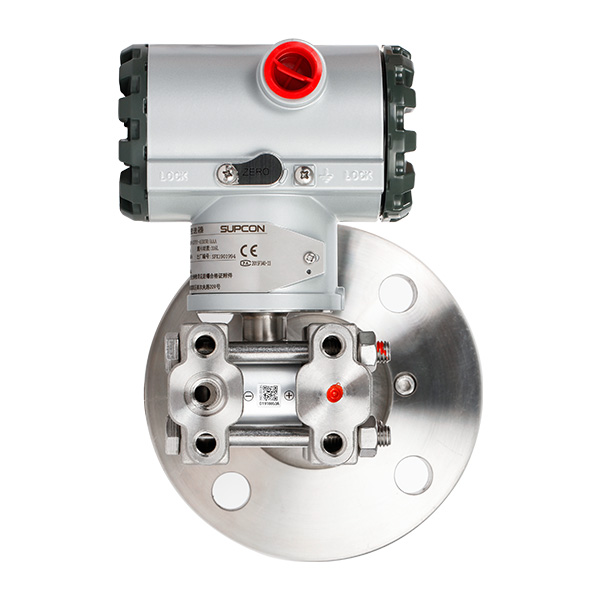

SKE series high-performance level transmitters equipped with Mono-silicon pressure sensors, suitable for pressure and level measurement in high-temperature, low-temperature, high-vacuum, high-viscosity, and crystallisation media. This transmitter is fast response, remote configuration, and self-diagnostic capabilities. The CXT series supports communication protocols including HART, FF fieldbus, PROFIBUS PA, and APL, with optional certified to SIL3.
Product Advantage
1. Wetted Materials: Measuring diaphragm 316L; 316L+gold plated; Monel 400; Hastelloy® C-276; tantalum; titanium; nickel.
2. Flange material: 316 , 304 stainless steel or carbon steel.
3. Sealing ring: FKM.
4. Filled fluid: Silicone oil.
5. Housing type: Aluminum alloy/316 SST; Cable Entry: ½-14NPT or M20×1.5 female thread; IP66/67
6. Process Connector:
LP side: ¼-18NPT female thread.
HP side: Flange size comply with ANSI, DIN,HG 20592, HG 20615 and GB standards.
7. Diaphragm Extension: 0mm, 50mm, 100mm, 150mm or 200mm.

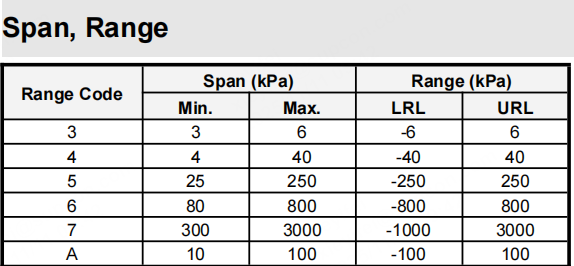

Technical Parameters
Product Uses
The device is used for the following measuring tasks:
1. Level, volume or mass measurements in liquids
2. High process temperatures up to 350 °C (752 °F) possible with diaphragm seal mount
