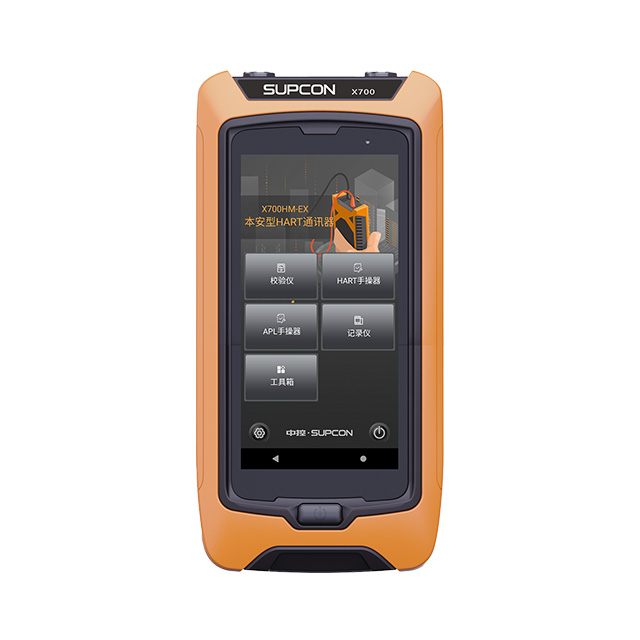

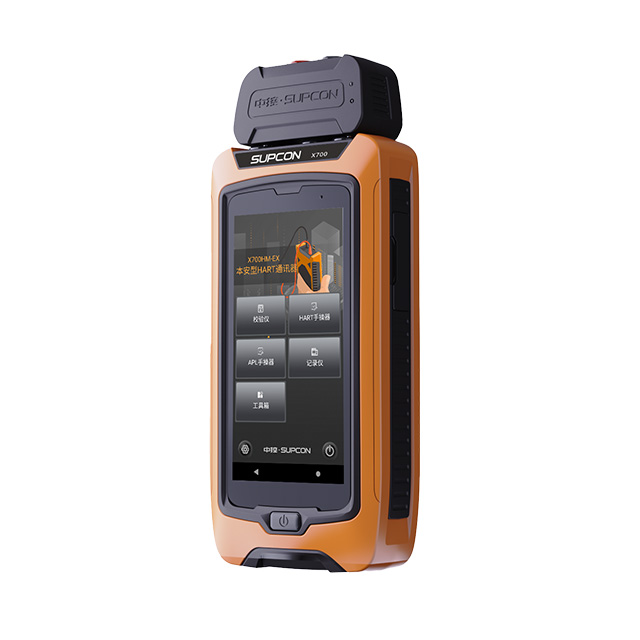

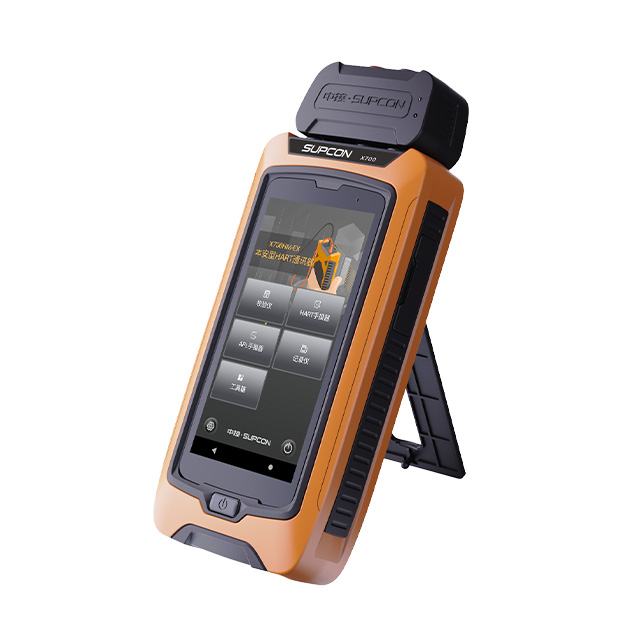

X700
The X700 products are Explosion-proof version products and developed based on the HART protocol and Electronic Device Description Language (EDDL), featuring a pre-installed device description library for over 1,500 HART instruments. They enable online configuration, loop calibration, and non-intrusive diagnostics for field instruments such as transmitters, positioners, and flow meters. By integrating multifunctional process calibrators, recorders, and thermoresistor/thermocouple calibration lookup capabilities, this product enables rapid and precise diagnostics and maintenance of field equipment.
Product Advantage
1. Exceptional instrument compatibility: Pre-loaded with over 1,500 HART device DD files from more than 200 manufacturers, covering 99% of instruments. Supports online updates for plug-and-play functionality.
2. Fully integrated functionality: Combines HART communicator, calibrator, recorder, scale table lookup, and safety barrier configuration capabilities.
3. Comprehensive signal support: Compatible with (0–24)mA/(0–100)mV/V/thermoresistors/thermocouples and other industrial signals. Built-in TC jack enables precise temperature compensation. Signal accuracy is no less than 0.015%.
4. Modular expansion: Optional APL module supports PROFINET APL device configuration, adapting to industrial intelligent upgrade requirements.
5. Intrinsically Safe: Ex ib ⅡC T4 Gb

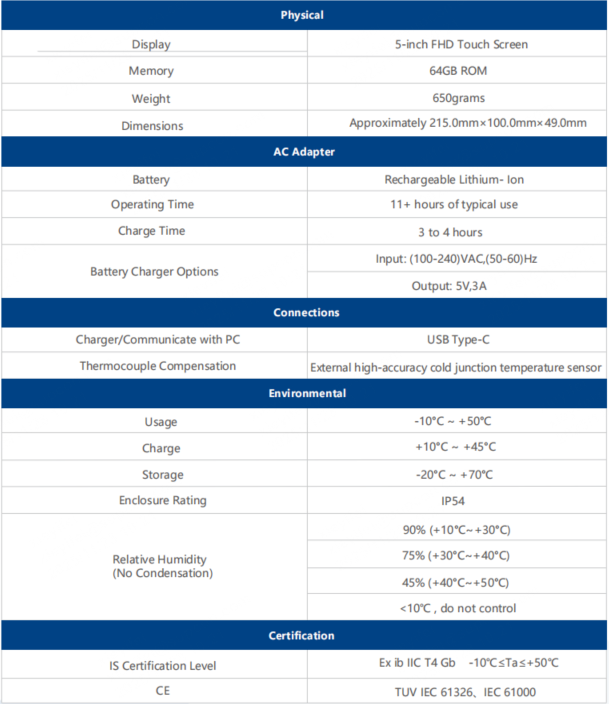

Technical Parameters
Product Uses
1. DCS/PLC Card Channel Maintenance:
In offline mode, output precise milliampere and voltage signals to the analogue input cards of the control system to verify their acquisition accuracy and linearity, enabling rapid identification of card-specific faults.
2. On-site Instrument Calibration and Fault Diagnosis:
Supply frequency signals to flow meters and drive valve positioners; measure the (4–20) mA output signal of transmitters.
3. Temperature transmitter system testing:
Simulate thermocouple or RTD signals output to temperature transmitters, testing the integrity and accuracy of the entire measurement loop from sensing through conversion to transmission.
4. Intelligent instrument parameter configuration:
Rapidly configure new or replaced HART intelligent transmitters, modifying core parameters such as span, units, damping time, and tag IDs online to achieve plug-and-play functionality.
