CVP2000-3 delivers comprehensive flameproof protection (Ex db/ia/tb, SIL2) in a compact package (205×141×155.5mm, 2.9kg). It offers APL/FF/HART communication, OLED display functionality at -40℃, and predictive maintenance features as larger models. Ideal for space-constrained hazardous areas requiring reliable control, low air consumption, and modular maintainability.
| Quantity: | |
|---|---|
CVP2000-3

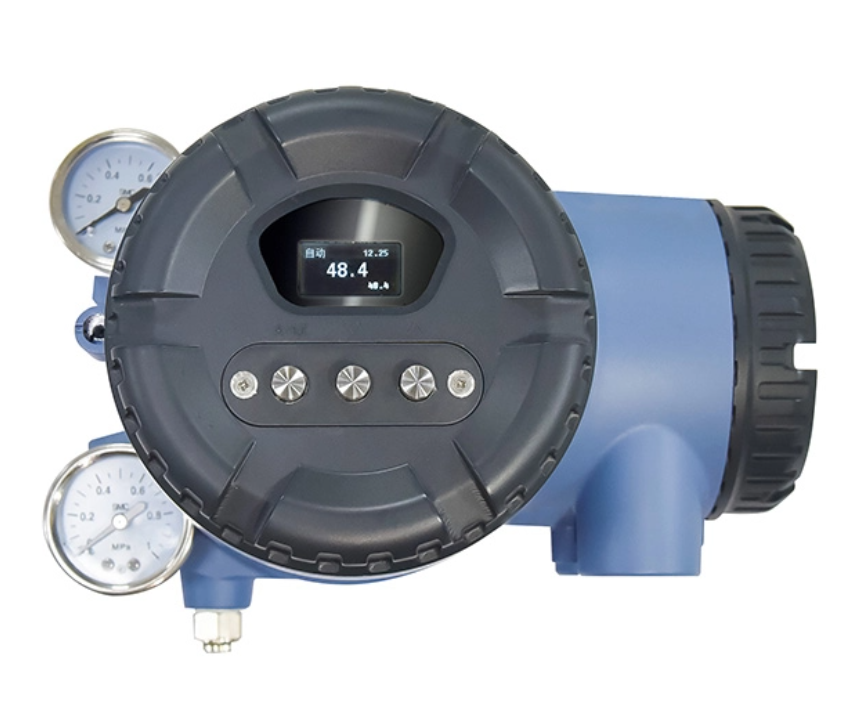

The CVP2000-3 Compact Flameproof Valve Positioner is a high-performance intelligent control device engineered for EPC contractors, plant operators, and industrial system integrators requiring robust valve control in high-risk hazardous areas. Delivering comprehensive flameproof protection (Ex db/ia/tb) and TÜV SIL2 certification, this positioner packs enterprise-grade functionality into a compact, lightweight footprint (205×141×155.5mm, 2.9kg), making it the ideal solution for space-constrained installations without compromising safety or performance. Supporting APL, HART, and FF communication protocols, it integrates seamlessly with existing industrial automation systems, while its -40°C rated OLED display and built-in predictive maintenance features deliver unmatched operational reliability in harsh industrial environments. Designed to regulate control valve opening with precision, it sets a new standard for flameproof valve positioners for hazardous areas with low air consumption, modular maintainability, and industry-leading safety credentials.
At the core of this SIL2 certified valve positioner is its comprehensive flameproof certification (Ex db/ia/tb), validated to meet the strictest global standards for operation in explosive hazardous areas. Unlike bulkier flameproof models, it delivers full safety protection without sacrificing installation flexibility.
With a footprint of just 205×141×155.5mm and 2.9kg total weight, this compact flameproof valve positioner solves a critical pain point for facilities with limited valve mounting space. Its streamlined form factor fits into tight enclosures while retaining all functionality of larger flameproof models.
Equipped with a standard pressure gauge module for continuous supply and output pressure monitoring, the positioner enables full predictive maintenance without external sensors. Its rugged OLED display operates reliably at temperatures as low as -40°C, ensuring full control in extreme cold environments.
With a steady state air consumption of less than 0.024Nm³/h, this low air consumption valve positioner minimizes compressed air usage, a major ongoing industrial expense. Its high flow rates ensure fast, responsive valve actuation without unnecessary air waste.
Item | Specification |
Mode of action | Single acting / Double acting |
Stroke range | Linear actuator: 10mm~130mm; Rotary actuator: 30°~100° |
Compressed air pressure | 0.14~0.7MPa |
Compressed air requirement | ISO 8573-1 compliant; Oil content Class III; Solid particle Class III; Dew point 10°C below minimum operating temperature |
Steady state air consumption | <0.024Nm³/h |
Rated inlet flow rate | ≥7.8Nm³/h at 0.5MPa |
Rated exhaust flow rate | ≥14.4Nm³/h at 0.5MPa |
Rated signal range | 4~20mA |
Minimum power supply current | ≥3.5mA |
Load voltage (20mA) | ≤8VDC (non-HART); ≤10.5VDC (HART) |
Impedance (20mA) | ≤400Ω (non-HART); ≤525Ω (HART) |
Direction of action | Forward / Reverse |
Deadband | 0.1%~10% adjustable |
Control accuracy | ±0.5% |
Hysteresis | ≤0.5% |
Communication | HART (optional), APL, FF |
Display | OLED, 0°/180° optional |
EMC compliance | IEC61000 (GB/T 17626) |
Rated insulation voltage | 1000VAC |
Protection class | IP66 |
Temperature effect | <0.015%/°C |
This hazardous area control valve positioner is purpose-built for precise valve opening regulation in compact control valves, with primary deployment across high-risk industrial sectors requiring strict flameproof safety compliance. Key sectors include oil and gas, petrochemical, pharmaceutical, biotechnology, chemical engineering, metallurgy, power generation, steel manufacturing, new materials, and renewable energy. It is optimized for classified explosion-proof zones, where reliable, space-efficient valve control is critical to operational safety.
The CVP2000-3 features a standardized mounting design compatible with most linear and rotary actuators, enabling fast, error-free installation in space-constrained hazardous areas. Its lightweight form factor reduces mounting strain, while clearly labeled terminals simplify electrical and pneumatic connections.
The high-contrast OLED display offers full local configuration and status monitoring, even at -40°C, with 0°/180° rotation for flexible mounting. The device supports forward and reverse action, with adjustable deadband to suit specific process requirements, delivering consistent ±0.5% control accuracy.
Engineered for minimal downtime, the positioner’s modular design allows for quick component replacement without full device removal. Integrated pressure monitoring delivers continuous diagnostic data for predictive maintenance, reducing unplanned shutdowns and extending equipment service life.
