SKC

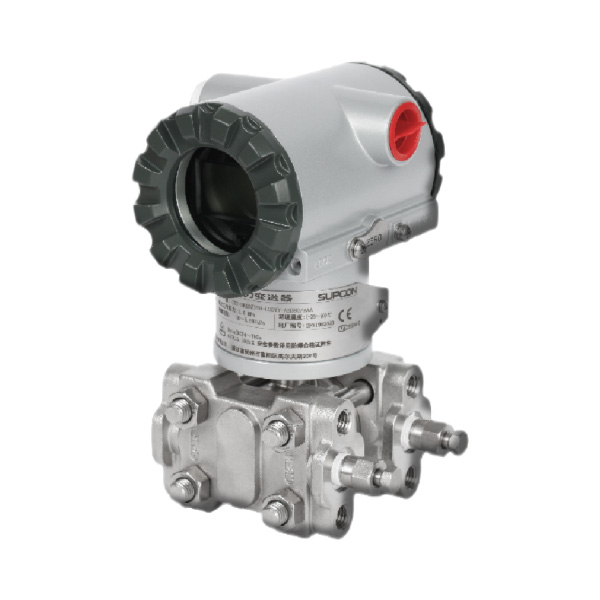

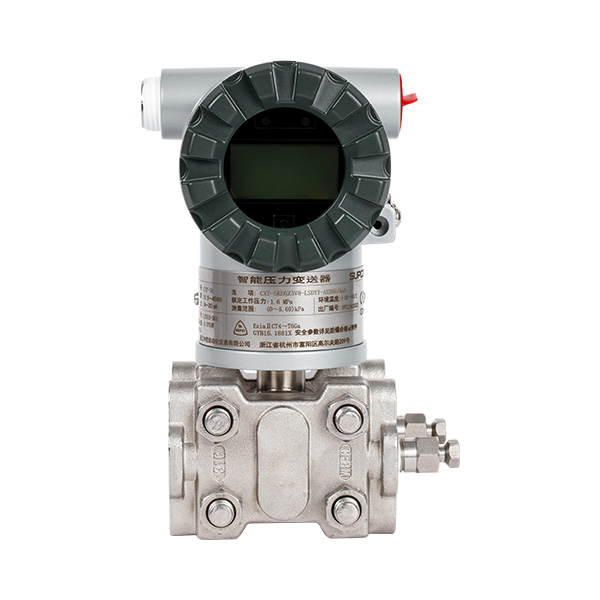

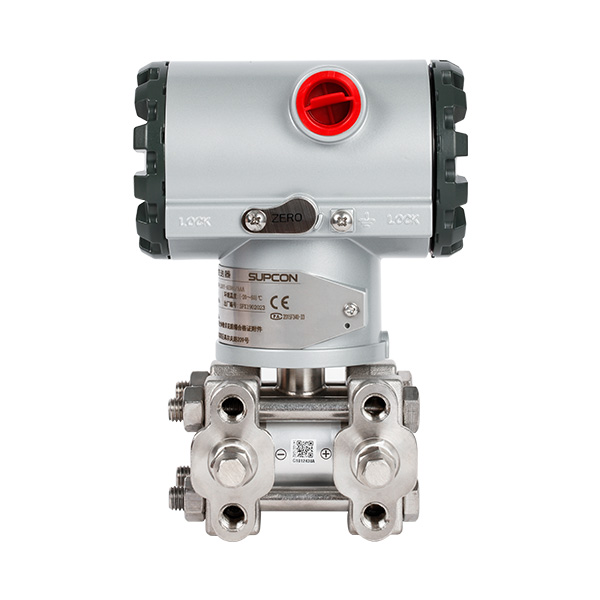

The SKC high performance differential pressure transmitter uses a mono-silicon pressure sensor to measure the flow, level, density and pressure of liquids, gases or vapors. The transmitter has the functions of fast response, remote setting and self-diagnosis. CXT series products provide HART, FF field bus and PROFIBUS PA, APL and other communication protocols, option with SIL certification.
Product Advantage
1. Standard accuracy: ±0.05%; High accuracy: ±0.035%; Long-term stability: ± 0.1%/10 years.
2. Wetted Materials: Isolating diaphragms: 316L SST, Hastelloy® C-276, 316L SST + Au coating, 316L SST + PFA coating, Tantalum Wetted sensor body: 316 SST, Hastelloy® C-276.
3. Filled fluid: Silicone oil, Fluorinated oil.
4. Housing: Aluminum/stainless steel 316，Cable Entry: ½-14NPT or M20×1.5 female thread.
5. Process Connector: ¼-18NPT female thread, ½-14 NPT female thread oval flange, ½-14NPT female thread oval flange + ½-14NPT connector + welded pipe.
6. Used for flow and differential pressure monitoring up to SIL3, certified to IEC61508 by TÜV.

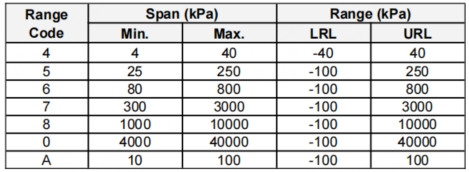

Technical Parameters
Product Uses
1. Flow measurement in conjunction with differential pressure sensors and primarily element for gases, vapors or liquids.
2. Level, volume or mass measurements in liquids.
3. Differential pressure monitoring, e.g. of filters or pumps.
