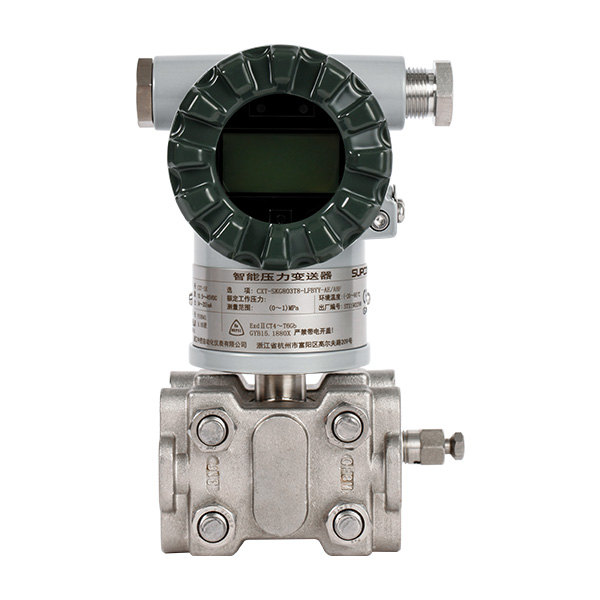

SKG/SKA
The SKG(Gauge pressure)/SKA(absolute pressure) transmitter adopts a mono-silicon pressure sensor for measuring liquid, gas or steam gauge/absolute pressure. The transmitter is fast response, remote setting and self-diagnosis. CXT series products provide HART, FF fieldbus, PROFIBUS PA, APL communication protocols, and optional SIL certification.
Product Advantage
1. Wetted Materials: Isolating diaphragms: 316L SST, Hastelloy® C-276, 316L SST + Au coating, 316L SST + PFA coating, Tantalum, Monel 400.
2. Sensor Body: 316 SST, Hastelloy® C-276, Monel 400
3. O-rings: FKM, PTFE
4. Filled fluid:Silicone oil, Inert oil
5. Housing：Aluminum/stainless steel 316; Cable Entry: ½-14NPT or M20×1.5 female thread; IP66/67
6. Process Connector: ¼-18NPTF, ½-14 NPTF+oval flange, ½-14NPTF+oval flange+½-14NPT connector+welded pipe.

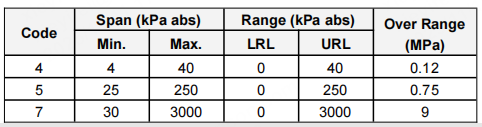

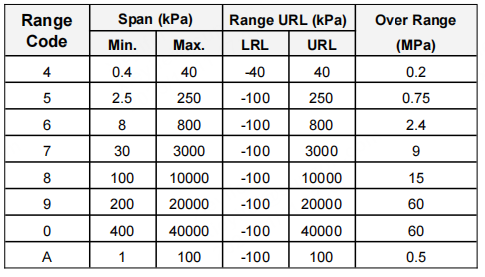

Technical Parameters
Product Uses
1. Level, pressure measurements in gas or liquids.
2. Pressure or Abs. pressure monitoring, e.g. of pipe or tank.
