Have you ever struggled with clogged impulse lines or sluggish sensor readings? A direct mount pressure transmitter solves these mechanical headaches immediately. It attaches right onto your process pipeline or storage vessel. This design completely bypasses the need for complex impulse piping or fragile capillary tubes. Engineers and procurement teams increasingly rely on this specific configuration. They choose it to eliminate vulnerable leak points and slash routine maintenance. Direct mounting also dramatically improves accuracy when measuring challenging, thick, or highly reactive media.
This guide will explore the operational mechanics and key configuration types you must understand. We will examine critical evaluation criteria and physical implementation constraints. You will learn how to properly specify these instruments. This knowledge will help you optimize plant performance and ensure accurate process control across your facility.
Direct mount pressure transmitters connect straight to the process, eliminating impulse lines and associated clogging or freezing risks.
They are ideal for high-viscosity media, slurries, and sanitary applications where dead legs cannot be tolerated.
Procurement requires carefully matching wetted materials and temperature thresholds, as direct mounting exposes the sensor to immediate process heat and vibration.
Selection between absolute and gauge formats depends entirely on the system's atmospheric exposure and baseline reference needs.
A deep understanding of instrument mechanics ensures better system design. You must know how these devices physically interact with your process. This knowledge directly impacts how you approach process pressure measurement across different facility zones.

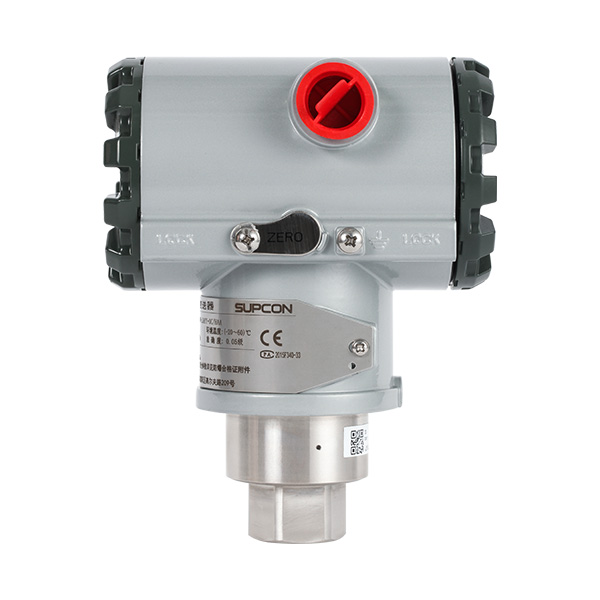

Direct mount instruments feature a straightforward physical architecture. They connect to vessels or pipes using threaded, flanged, or sanitary flush fittings. The isolating diaphragm sits right at the connection point. It makes immediate contact with the process media. This design houses the sensitive measuring elements securely within a robust metal body. You do not need secondary isolation valves or complex manifold assemblies. The sensor module locks directly into the primary process boundary.
Traditional setups rely heavily on impulse lines. These narrow tubes transport fluid from the main pipe to a remote sensor. Impulse lines introduce significant operational vulnerabilities. They trap air bubbles, collect heavy particulates, and freeze during winter. Direct mounting shifts the operational paradigm entirely. You remove these intermediary fluid-filled capillaries. The instrument measures the media right where it flows. This eliminates the sluggish response times caused by long, clogged tubing.
The internal transduction process happens swiftly. The isolating diaphragm deflects under physical pressure. A minimal amount of internal fill fluid transfers this force to the actual sensing element. Most industrial units use a piezoresistive or capacitive sensor. The sensor changes its electrical properties based on the applied force. An internal microprocessor immediately reads this change. It converts the raw physical data into a standard 4-20mA analog signal. Modern units overlay a digital HART signal on top of this current loop.
Choosing the correct measurement reference dictates system accuracy. You must understand how atmospheric baseline changes affect your data. Engineers must select the right reference type based on the specific vessel environment.
A gauge pressure transmitter measures force relative to local atmospheric pressure. The instrument features a tiny vent to the ambient environment. The sensor reads zero when exposed to open air. This remains the default choice for open or vented systems. You will use gauge sensors for standard pipe pressure tracking. They excel in baseline process control where ambient atmospheric shifts do not harm the process. Weather patterns and facility HVAC systems constantly change local air pressure. Gauge instruments automatically compensate for these external atmospheric fluctuations.
An absolute pressure transmitter measures relative to a perfect vacuum. Engineers seal a deep vacuum behind the sensing diaphragm during manufacturing. The sensor reads absolute zero only in a total vacuum environment. This configuration proves mandatory for closed, vacuum-sealed systems. Distillation columns and chemical reactors require absolute measurement. Atmospheric pressure fluctuations would severely corrupt critical data in these low-pressure environments. You must use absolute references to track pure thermodynamic properties regardless of the weather outside.
Switching from traditional setups to direct mount configurations yields immediate operational benefits. Facilities experience fewer shutdowns and simplified routine maintenance. Plant managers recognize these substantial engineering advantages.
Impulse lines demand constant attention. Maintenance teams spend hours clearing clogged tubing. Winter conditions force facilities to install expensive heat tracing systems. You must power, insulate, and maintain these heating elements. Removing impulse lines completely eliminates these winterization needs. Technicians no longer need to flush blocked lines or replace cracked tubing. This reduction in physical infrastructure dramatically decreases your routine maintenance workload.
Modern process plants prioritize spatial efficiency. Utilizing a compact pressure transmitter significantly reduces the required installation footprint. Engineers can fit these devices into incredibly tight process skids. Modular plant designs rely on this spatial economy. You avoid the bulky brackets and extensive piping runs required by remote sensors. The streamlined profile prevents physical interference with other nearby equipment.
Comparison Chart: Direct Mount vs. Traditional Impulse Lines | ||
Feature/Metric | Direct Mount Transmitter | Traditional Impulse Lines |
|---|---|---|
Installation Footprint | Minimal, attaches directly to process | Extensive, requires tubing and brackets |
Clogging Risk | Extremely Low (Flush diaphragm) | High (Narrow tube passages) |
Winterization Needed | No (Relies on process heat) | Yes (Requires heat tracing/insulation) |
Response Time | Instantaneous | Delayed (Fluid transfer lag) |
Capillary fluid fills introduce measurement errors. Ambient temperature changes cause the fill fluid density to fluctuate. This fluctuation shifts the baseline zero reading. Direct contact prevents this signal dampening. The isolating diaphragm instantly feels process changes. The sensor registers pressure spikes without the hydraulic delay found in long tubes. You gain faster, more reliable data for critical control loops.
Every mechanical joint presents a potential leak point. Traditional setups involve multiple valves, tees, and threaded connections. Harsh media easily exploits these weak points. Direct mounting utilizes a single, robust connection. Fewer mechanical joints mean fewer potential fugitive emission points. This streamlined approach aligns perfectly with stringent environmental compliance standards. You protect site personnel from hazardous chemical leaks.
Certain industrial applications naturally demand a direct mount approach. Standard remote sensors simply fail in these environments. You must match the physical configuration to the media behavior.
Tank Pressure Monitoring: You can calculate the hydrostatic level in large vessels without complex piping. The sensor measures the liquid head pressure at the tank bottom. Tank pressure monitoring works beautifully for both vented and pressurized storage. Vented tanks require a single gauge unit. Pressurized tanks require monitoring the top vapor space and the bottom liquid head simultaneously.
Viscous and Particulate Media: Some fluids destroy standard instrumentation. Pulp and paper processing, wastewater treatment, and mining slurries carry heavy particulates. These solids will immediately block standard impulse lines. A flush-mounted direct transmitter presents a flat surface to the media. The heavy slurry sweeps past the diaphragm without accumulating.
Hygienic and Sanitary Processing: Food, beverage, and pharmaceutical facilities operate under strict biological controls. Process lines cannot tolerate dead legs where bacteria might grow. Direct mount sanitary fittings integrate smoothly into clean-in-place (CIP) and sterilize-in-place (SIP) systems. The flush diaphragm ensures cleaning chemicals wash away all organic residue effectively.
Direct mounting exposes the instrument to harsh realities. You strip away the protective buffer provided by impulse lines. Engineers must evaluate physical risks thoroughly before specifying these devices.
The Risk: Direct mounting offers absolutely no thermal buffer. The sensor body absorbs heat directly from the process fluid. Most standard electronic housings fail around 85°C (185°F). High process temperatures will rapidly degrade or destroy the sensitive circuit boards.
The Mitigation: You must evaluate heat dissipators. Cooling towers or finned extensions create a thermal break between the diaphragm and the electronics. If process temperatures exceed even these extended limits, you must specify remote seal variants instead. Remote seals move the sensitive electronics away from the extreme heat zone.
Best Practice: Always calculate the ambient temperature profile alongside the process temperature. Sun load on a metal housing significantly increases the internal temperature.
The Risk: Rigid attachment transfers pipe vibration directly into the sensor module. Installing a transmitter near positive displacement pumps or large compressors causes trouble. High-frequency vibration induces signal noise. Prolonged shaking fractures internal circuit boards and severs fine wire bonds.
The Mitigation: Assess the plant vibration profile during the design phase. Specify robust, vibration-resistant compact housings. Ensure the pipe itself receives adequate structural support. You should avoid installing instruments on unsupported pipe spans.
Common Mistake: Mounting heavy transmitters on thin-walled pipes without secondary bracing leads to mechanical fatigue and eventual pipe rupture.
Evaluation standard: The isolating diaphragm makes direct, continuous contact with the media. You must select diaphragm materials based strictly on chemical corrosiveness and physical abrasion. Standard applications use 316L Stainless Steel. Highly corrosive environments demand exotic alloys.
Standard Wetted Material Selection Guide | ||
Diaphragm Material | Primary Application Profile | Key Limitation |
|---|---|---|
316L Stainless Steel | Water, oil, mild chemicals, general utilities | Pits heavily in high-chloride environments |
Hastelloy C-276 | Seawater, strong acids, sour gas (H2S) | Vulnerable to certain highly concentrated alkalis |
Tantalum | Extremely corrosive acids (Hydrochloric, Nitric) | Brittle, poor resistance to physical abrasion |
Gold-Plated SST | Hydrogen gas processing | Easily scratched by particulates |
You must avoid over-engineering to control procurement budgets. Do not specify Tantalum if 316L Stainless Steel safely handles the chemical profile.
Systematic specification prevents costly installation errors. Follow a structured approach to match the instrument to your exact process demands. You must build a comprehensive technical profile.
Map the Process Environment: Define the absolute maximum and minimum process temperatures. Record the expected ambient temperature swings. Document local vibration levels and humidity conditions.
Determine the Measurement Goal: Select between gauge, absolute, or differential measurement types. You must know if you are tracking simple pipe flow, calculating liquid head, or monitoring a vacuum chamber.
Specify the Physical Connection: Choose your mechanical interface carefully. Match existing vessel or pipe infrastructure. Select ASME flanges, NPT threaded connections, or sanitary flush mounts based on your piping standards.
Verify Output Protocols: Ensure seamless communication with your existing DCS or PLC network. Confirm whether the control system requires HART 7, Foundation Fieldbus, Profibus PA, or a standard 4-20mA analog signal.
Direct mount pressure transmitters serve as ultimate problem-solvers in modern industrial facilities. They conquer heavy clogging, eliminate winter freezing risks, and fit seamlessly into space-constrained environments. By removing vulnerable impulse lines, you drastically improve system reliability and measurement speed. Successful deployment always hinges on accurate environmental profiling. You must rigorously map process temperature, pipe vibration, and media chemistry before purchase. Evaluate your most problematic process lines today. Download a technical datasheet, access a sizing tool, or contact an application engineer to review your specific process parameters immediately.
A: Direct mounts connect straight to the process boundary, placing the sensor right at the pipe or vessel. Remote seals use long, fluid-filled capillaries to physically separate the electronic transmitter from the process connection. You use remote seals primarily to isolate sensitive electronics from extreme heat or to fit sensors into incredibly tight spaces.
A: Yes, they perform exceptionally well for level measurement. They calculate hydrostatic head pressure based on liquid density and height. You install a gauge unit at the bottom of a vented tank to continuously monitor the liquid level.
A: Compact transmitters offer significant space savings but present specific trade-offs. They often feature fewer advanced diagnostic displays or local push-button controls. Additionally, their smaller metal housings offer less thermal mass, resulting in lower maximum temperature tolerances compared to standard, large-scale industrial housings.
A: Always consult chemical compatibility charts specific to your process fluid and operating temperature. Use 316L Stainless Steel as a baseline for water and mild media. Upgrade to Hastelloy or Tantalum for aggressive acids. Evaluate the media's abrasiveness, as heavy particulates can scour and destroy soft protective coatings quickly.
