Typical User:
Tangshan Sanyou Group Co., Ltd.
Field characteristics:
Special working conditions where the distance between pressure tapping points and maintenance points is large, or in scenarios with small diameters, small ranges, and long capillary tubes. Under such conditions, conventional flange transmitters are significantly affected by temperature drift.
Customized Solution:

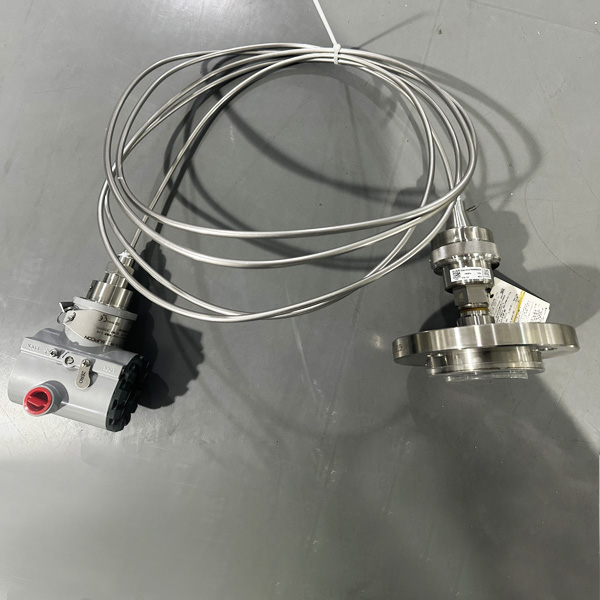

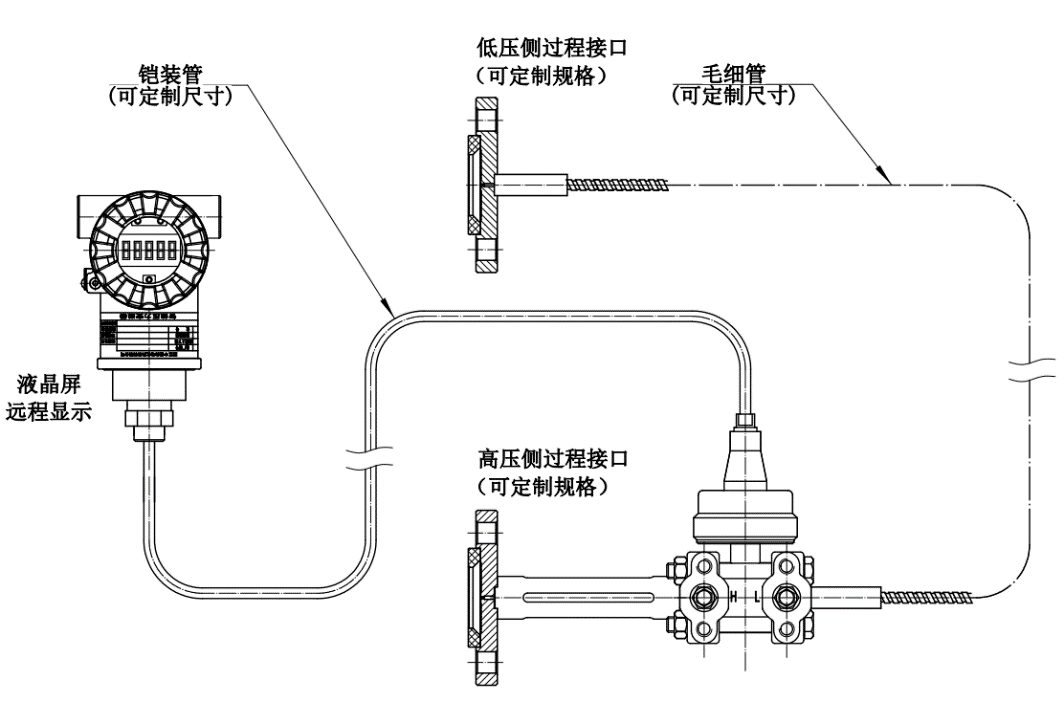

The electronic chamber of the transmitter is remotely connected to the sensor part via explosion-proof cables/armored pipes, enabling direct installation of the sensor or optimal capillary ratio for positive/negative pressure sides, resulting in lower temperature influence on the transmitter.
Solution characteristics:
Effectively addresses issues where the silicone oil properties in the transmitter's capillary tubes adversely affect measurement accuracy and response speed.
