Typical Users:
Anhui Jixi Xiangyang Paper Industry Co., Ltd. / Kunming Hongxing Ronghe Paper Industry Co., Ltd. / Baixiang County Jinbaoshi New Material Development Co., Ltd. / Hubei Crane New Materials Co., Ltd. / Jiangxi Zhiyuan Paper Industry Co., Ltd. / Shandong Xinhe Paper Engineering Co., Ltd.
Field characteristics:
Suitable for industrial sites in the paper-making industry and other sectors with easy medium blockage; requires flush installation of the pressure-sensing diaphragm with the inner wall of equipment, compatible with multiple installation interfaces such as NPT, M20, and G threads; specially designed for precision measurement conditions with small ranges and small diameters.
Customized Solution:

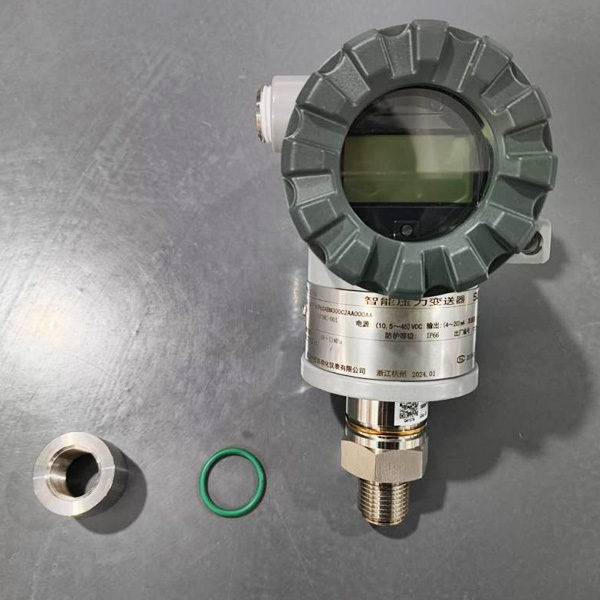

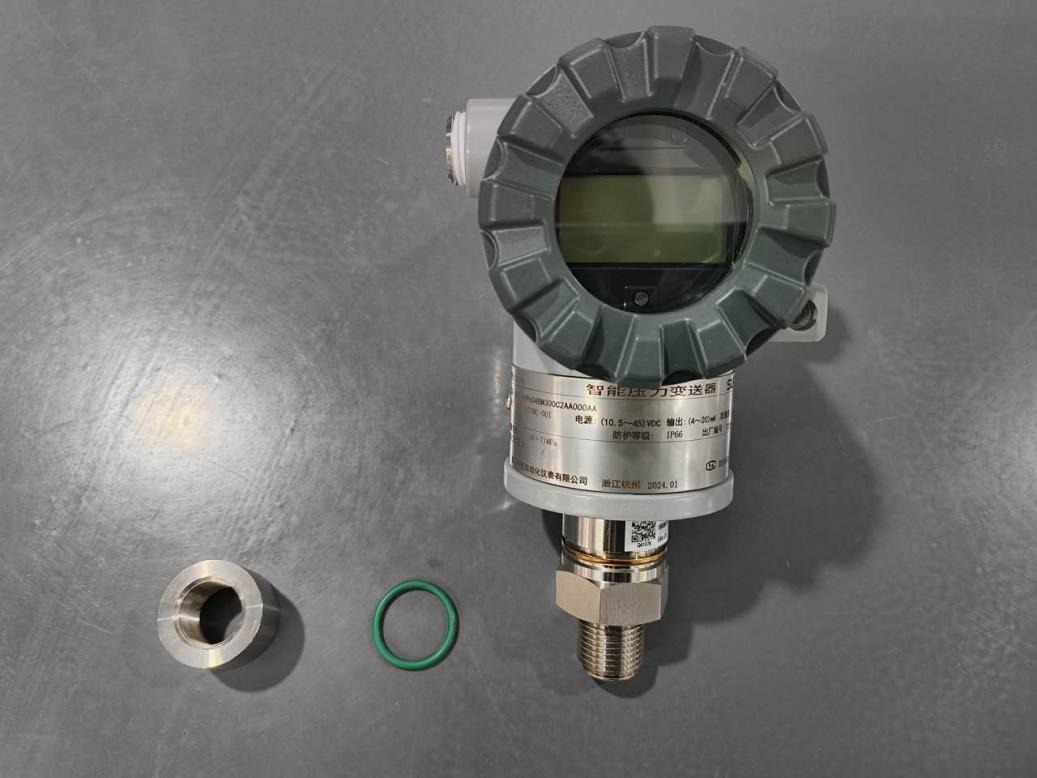

Adopts a threaded pressure transmitter structural design, integrating the pressure-sensing diaphragm into the end face of the external thread. The flush installation of the diaphragm with the inner wall of the equipment is achieved through the technology of rearward shifting the sealing surface. Meanwhile, the layout of the sensor core is optimized, and a front-mounted design is used to shorten the silicone oil conduction path, effectively reducing the impact of temperature changes on measurement accuracy.
Solution Features:
Completely solves the problem of viscous medium accumulation on the diaphragm surface, simplifying on-site cleaning and maintenance processes; achieves precise measurement in small-diameter pipelines through structural optimization, meeting small-range measurement requirements.
