Modern industrial facilities demand absolute precision to remain competitive. You must modernize your approach to process control to maintain peak efficiency and safety. Selecting the right instrumentation is no longer just about matching physical pipe fittings. It requires ensuring absolute signal integrity across complex distributed control systems (DCS) and programmable logic controller (PLC) networks.
Choosing an incompatible device often leads to severe operational headaches. You risk steady calibration drift, frustrating false alarms, or complete process control loop failures. Electrical noise and harsh media degradation easily destroy mismatched equipment. Poor selection ultimately jeopardizes plant safety and halts production lines.
This article provides a clear, evidence-based framework to solve these exact challenges. We give instrumentation engineers and procurement teams the practical knowledge they need. You will learn how to accurately evaluate, shortlist, and implement the ideal industrial transmitters for any process variable.
Transmitters are distinct from bare sensors; they convert raw, localized physical changes into robust, standardized signals (like 4-20mA or HART) for centralized control loops.
The "live zero" in a 4-20mA Pressure Transmitter loop is an industry standard for fail-safe diagnostics, inherently superior to older 1-5V voltage signals in noisy environments.
Selection requires balancing specific process variables—like isolating harsh media using a Remote Seal Type Pressure Transmitter—against budget and maintenance capabilities.
Migrating to "Smart" digital transmitters allows for remote calibration and predictive diagnostics, fundamentally lowering total cost of ownership (TCO).
Many technicians mistakenly use the terms "sensor" and "transmitter" interchangeably. We must establish a clear conceptual boundary. Sensors merely detect physical changes in the environment. A bare Resistance Temperature Detector (RTD) or a raw piezoelectric element only generates a weak, localized signal. It produces a tiny resistance shift or a millivolt output. You cannot send this raw signal across a massive industrial plant. Electrical noise easily corrupts weak inputs over long cable runs.
Transmitters solve this fundamental problem. They take the weak sensor input and condition it. The internal circuitry amplifies the raw data. It then converts this data into a robust, standardized electrical signal. Transmitters ensure data travels hundreds of meters without any degradation.
You must understand how transmitters fit into the broader automation architecture. The standard control loop follows a strict sequence of events. We map this interaction as follows:
Sensor (Input): Detects the immediate physical change in the pipe or tank.
Transmitter (Process Variable): Converts the raw physical data into a measurable Process Variable (PV) and transmits it.
Controller (Evaluation): A PLC or DCS receives the PV. It compares the incoming data against a predetermined Setpoint (SP).
Actuator (Corrective Action): The controller commands a final control element. It might open a valve or start a pump to correct the process.
The 4-20mA analog current loop remains the undisputed backbone of industrial instrumentation. Engineers favor current over voltage for practical reasons. Current loops resist ambient electrical noise far better than 0-10V systems. Current also remains constant throughout a series circuit. You do not suffer voltage drops over long wire runs.
The most brilliant feature of the 4-20mA standard is the "live zero." We scale instruments so 4mA represents zero percent of the measurement range. Twenty milliamps represents one hundred percent. If a wire breaks or the transmitter fails completely, the loop current drops to 0mA. The controller instantly recognizes a value below 4mA as a critical fault. Older 0-10V systems lack this inherent fail-safe. In a voltage system, zero volts could mean zero pressure, or it could mean a severed wire. The live zero eliminates this dangerous ambiguity.
Pressure measurement dominates most industrial facilities. You must specify the correct sub-type to ensure process safety.
Gauge vs. Absolute: Gauge pressure devices use local atmospheric pressure as their zero reference. They cost less and serve general applications well. However, weather fronts and altitude shifts affect their baseline accuracy. Absolute pressure devices use a sealed perfect vacuum as their reference. They provide superior precision for critical chemical reactions. You will pay a higher premium for absolute measurement.
Differential Pressure (DP): Plants use DP measurement extensively. These devices measure the pressure difference between two distinct points. You can calculate fluid flow rates by measuring the pressure drop across an orifice plate. You can also monitor expensive filter banks. A rising pressure drop indicates a clogging filter.

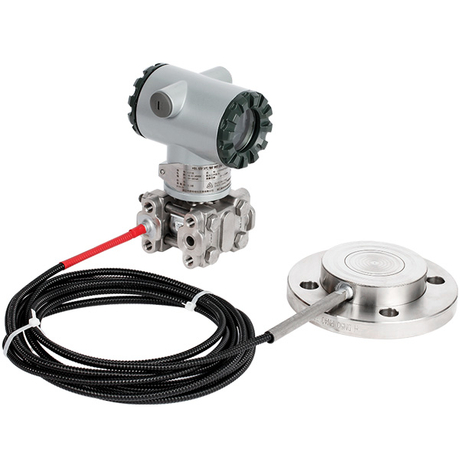

Remote Seal Solutions: Standard instrument diaphragms face serious limits. Highly corrosive acids eat through standard stainless steel. Viscous slurries quickly clog narrow instrument ports. Extreme process heat melts delicate internal electronics. You need a specialized solution for these harsh environments. A Remote Seal Type Pressure Transmitter acts as a critical protective barrier. Capillary tubes filled with isolation fluid separate the sensitive transmitter body from the destructive process media. This specialized setup prevents equipment failure while maintaining accurate measurement loops.
Managing inventory and preventing hazardous spills requires precise level tracking. You must distinguish between two main measurement philosophies.
Point Level vs. Continuous Level: Point level devices trigger simple on/off alarms. They act like basic switches to prevent tank overflows. Continuous level measurement provides proportional data. It gives you a steady 4-20mA output reflecting the exact fluid volume at all times.
Application constraints dictate your technology choices. Radar and ultrasonic transmitters offer excellent non-contact solutions. They bounce signals off the fluid surface. You avoid wetting the instrument in highly corrosive acids. Conversely, deep or heavily agitated tanks disrupt radar signals. Hydrostatic methods perform much better here. A submerged Level Transmitter measures the resting pressure of the liquid column to calculate depth accurately.
Flow: Modern flow measurement heavily integrates primary sensors and transmitters. They analyze differential pressure, ultrasonic pulses, or magnetic disturbances. The transmitter calculates exact fluid velocity and translates it into precise volumetric flow rates.
Temperature: You must match the transmitter to the specific sensor type. Thermocouples rely on electromotive force (EMF) changes across dissimilar metals. RTDs rely on predictable electrical resistance changes. The transmitter converts either input into a clean, linear current output.
Process Variable | Primary Sub-Types | Core Measurement Principle | Best Use Case Scenario |
|---|---|---|---|
Pressure | Gauge, Absolute, DP, Remote Seal | Diaphragm deflection alters internal capacitance or resistance. | Pipeline monitoring, filter health, highly corrosive media isolation. |
Level | Radar, Ultrasonic, Hydrostatic | Time-of-flight reflection or liquid column pressure calculation. | Chemical tank inventory, deep well monitoring, overflow prevention. |
Flow | Magnetic, Coriolis, DP-based | Velocity calculation via physical displacement or electromagnetic induction. | Custody transfer, dosing systems, water treatment throughput. |
Temperature | RTD-based, Thermocouple-based | Converts weak EMF or resistance curves into linear outputs. | Reactor vessel heat control, HVAC systems, pasteurization loops. |
Traditional analog transmitters remain highly cost-effective and straightforward. They perform a simple, dedicated task perfectly. Technicians map a Lower Range Value (LRV) directly to the 4mA signal. They map an Upper Range Value (URV) to the 20mA signal. These units lack complex internal menus. They do not process digital diagnostics. You use them when budget constraints are tight and the control loop demands simple, reliable monitoring.
Microprocessor-equipped digital units dominate modern plant upgrades. They present a compelling business case for reliability engineering teams.
HART & Fieldbus Protocols: Smart transmitters do not abandon the 4-20mA standard. Instead, they overlay digital data onto it. The Highway Addressable Remote Transducer (HART) protocol uses Frequency Shift Keying. It piggybacks digital diagnostic data over existing two-wire setups. You gain access to vital metadata. Operators read device tags, check calibration status, and monitor primary sensor health without leaving the control room.
Implementation Reality: You must acknowledge the upfront cost premium of smart units. Digital transmitters cost significantly more than their analog counterparts. However, they drastically reduce manual maintenance hours. Technicians perform remote recalibrations via handheld communicators. Systems issue predictive failure alerts before a catastrophic breakdown occurs. You avoid massive financial losses tied to unplanned process downtime.
Wireless transmitters offer incredible flexibility for remote installations. You can monitor isolated wellheads or sprawling tank farms without laying expensive cabling infrastructure. They utilize robust RF networks like WirelessHART. However, you must transparently acknowledge their limitations. You accept total battery dependence. Maintenance teams must manage strict replacement schedules. You also face potential radio frequency interference risks in heavily metallic environments.
Procurement teams and instrumentation engineers cannot rely on guesswork. You must evaluate every new installation against strict criteria. We recommend adopting this five-point framework to guarantee process compatibility.
Process Media & Operating Conditions: Analyze your fluid characteristics first. Does the liquid contain abrasive particulates? Does the chemical require specialized wetted materials like Hastelloy or Monel? Highly viscous fluids plug standard process connections. In these severe cases, you must specify a Remote Seal Type Pressure Transmitter to prevent internal clogging and combat aggressive corrosion.
Rangeability and Accuracy Requirements: Match the instrument's turndown ratio to your actual process extremes. A 100:1 turndown ratio offers great flexibility for varying flow rates. However, avoid over-specifying accuracy. High precision always commands a steep price premium. Do not buy a 0.05% accuracy device if the specific control loop only requires 0.5% tolerance.
Environmental & Safety Compliance: Check the physical installation zone carefully. Does the area contain flammable gases or combustible dust? You must identify the strict need for Explosion-Proof housings or Intrinsically Safe circuitry. Furthermore, determine if the instrument belongs to a Safety Instrumented System (SIS). SIS loops require devices carrying formal SIL (Safety Integrity Level) certifications.
Signal & Output Compatibility: You must ensure seamless integration with the host system. Verify that your selected standard matches legacy DCS or PLC input cards. Older facilities might only accept pure analog 4-20mA signals. Modern upgrades usually demand HART integration or fully digital Modbus communication. Mismatched outputs require expensive secondary converters.
Lifecycle Budgeting: Look far beyond the initial purchase order price. Factor in the total installation complexity. Consider how often the device will require physical calibration. Estimate the realistic lifespan under harsh plant conditions. Constant vibration, severe thermal shock, and aggressive washdowns destroy cheap transmitters quickly. Investing in robust initial quality prevents recurring replacement expenses.
Even the highest-quality transmitters fail if installed improperly. Electrical noise constantly threatens signal integrity. Variable Frequency Drives (VFDs) and large motors emit heavy electromagnetic interference. Ground loops present another massive danger in temperature and pressure installations. Differences in ground potential push rogue currents through instrument wiring. You must specify heavily shielded cables. Always utilize isolated transmitters to block these rogue currents from reaching the PLC.
You must accept the physical reality of instrumentation. All transmitters drift over time. Environmental stress slowly degrades electronic components. Constant temperature swings cause subtle metal fatigue in sensing diaphragms. Overpressure events stretch components beyond their elastic limits. You cannot prevent drift entirely. You must implement proactive, regular calibration schedules to catch drift before it impacts product quality.
Routine physical maintenance prevents catastrophic loop failures. Inspect terminal blocks routinely. Moisture ingress destroys delicate circuit boards quickly. Technicians must ensure cable glands seal tightly against humidity. Corrosive atmospheres aggressively degrade rubber O-rings and polymer seals. You must schedule routine inspections. Replace aging seals during planned turnarounds before they fail and leak hazardous media into the environment.
Choosing the correct transmitter requires a comprehensive, holistic view of your entire operation. You cannot select instruments based on pipe thread size alone. You must carefully analyze the chemical makeup of the process fluid, the hostility of the physical environment, and the communication needs of your digital control architecture.
Your next steps require deliberate action. We advise readers to audit their current control loops immediately. Verify your existing wiring configurations to understand whether you support 2-wire or 4-wire devices. If your plant handles aggressive media, consult specific product data sheets. Engage directly with application engineers to size complex components properly. Whether you are scaling a deep tank with a Level Transmitter or protecting sensors with capillary remote seals, proper upfront engineering ensures decades of reliable performance.
A: A transducer outputs a low-level, unconditioned signal. These raw signals, measured in millivolts or ohms, remain highly susceptible to electrical noise over distance. A transmitter contains active internal circuitry. It amplifies, conditions, and standardizes the transducer's weak signal. It converts the input into a robust 4-20mA output, ensuring safe and reliable long-haul transmission directly to your PLC.
A: The 4-20mA standard aggressively resists electrical noise. Current loops do not suffer from signal-degrading voltage drops over long cable lengths. Most importantly, the "live zero" (4mA) provides immense diagnostic value. If the loop signal drops to zero milliamps, operators instantly detect a severed wire or complete instrument failure.
A: You must specify this unit when the process media threatens standard sensors. Extremely hot fluids melt internal electronics. Highly viscous materials clog narrow transmitter ports. Corrosive chemicals rapidly destroy typical wetted metals. Additionally, sanitary applications require remote seals to prevent bacteria growth. The seal isolates the transmitter while transmitting pressure through fluid-filled capillaries.
