Sensor drift remains an inevitable reality in process industries. Unmanaged drift directly compromises process safety. It inflates operational costs and triggers severe compliance failures. Factory calibrations provide a reliable baseline under strictly controlled laboratory conditions. However, real-world deployment introduces severe mechanical stress. You also face constant temperature fluctuations and harsh environmental variables. These physical factors degrade measurement accuracy over time. We must address this degradation proactively.
This guide equips instrumentation engineers and plant managers with a rigorous operational framework. You will learn how to evaluate various calibration methodologies. We will help you establish verifiable and data-driven maintenance cycles. You will also discover how to select high-stability instrumentation. This approach systematically minimizes long-term measurement uncertainty across your facility.
Relying solely on "factory reference accuracy" is a common trap; operators must define a realistic Maximum Permissible Error (MPE) based on field conditions.
Industry-standard testing requires a Test Uncertainty Ratio (TUR) of at least 3:1 or 4:1 between the reference standard and the device under test.
Applying a 5-point calibration procedure with hysteresis testing provides actionable data to prove linearity and extend maintenance intervals.
Selecting modern, high-stability devices like the CXT Series Pressure Transmitter drastically reduces long-term drift.
Microscopic deviations in a 4-20mA signal cause significant operational problems. They translate directly into physical product waste. Your facility might experience degraded product quality due to improper batch mixing. You also consume excessive energy when control valves respond to skewed sensor data. A minor 0.5% drift on a high-pressure line alters flow calculations drastically. These small errors compound over time. They force pumps and compressors to work harder than necessary.
Metrology distinguishes clearly between accuracy and uncertainty. Accuracy serves as a qualitative envelope. It describes how closely a measurement matches the true value. Uncertainty represents a strictly quantifiable metric. Technicians typically use a k=2 coverage factor during calculations. This specific factor provides 95% confidence in your documented measurements. Auditors look for uncertainty calculations rather than generic accuracy claims. They need statistical proof of your instrument's reliability.
Documented and traceable calibration remains mandatory across modern industries. ISO 9001 and ISO/IEC 17025 standards demand rigorous documentation. Heavily regulated sectors require these meticulous records. Chemical processing plants and oil refineries rely on traceable data to operate safely. Missing calibration logs invite severe penalties during regulatory audits. Safety instrumented systems (SIS) also depend on highly accurate transmitters to prevent catastrophic failures.
Operators must move away from arbitrary maintenance schedules. You should build data-driven calibration cycles instead. Base your decisions on historical "As Found" and "As Left" records. "As Found" data shows how much the device drifted since its last check. "As Left" data confirms its newly adjusted state. Tracking these specific metrics allows you to define clear success criteria. You can optimize labor allocation based on actual instrument performance.
Standard calibration intervals vary significantly based on operational environments. Harsh industrial applications demand frequent checks. You should calibrate these devices every 1 to 3 years. Stable, climate-controlled indoor environments offer more flexibility. You can safely extend these intervals to 4 to 6 years. Always monitor the baseline performance during the first year of operation. This initial data helps you fine-tune the long-term schedule.
Some processes require remote diaphragm seals to isolate the sensor. These setups demand much stricter maintenance timelines. You must halve their standard calibration intervals. If a standard transmitter needs a 4-year cycle, a remote seal version requires a 2-year cycle. The capillary fill fluid faces intense temperature sensitivity. It also absorbs significant mechanical stress from process vibrations. These factors accelerate signal drift rapidly.
You can safely extend maintenance intervals using historical digital documentation. Analyze your past digital records carefully. Look at the maximum historical drift recorded over several cycles. You can extend the calibration schedule if this drift remains below 50% of the tested tolerance. Hard data removes the guesswork from maintenance planning. It allows your technicians to focus on genuinely problematic control loops.
Calibration Frequency Guidelines Chart
Operating Environment | Equipment Type | Recommended Interval | Key Degradation Factors |
|---|---|---|---|
Climate-Controlled Indoor | Standard Direct Mount | 4 to 6 Years | Natural electronic aging |
Harsh Industrial/Outdoor | Standard Direct Mount | 1 to 3 Years | Temperature swings, vibration |
High-Temperature Process | Remote Diaphragm Seal | 1 to 2 Years | Fill fluid expansion, mechanical stress |
Your reference calibration equipment must be highly accurate. Industry standards enforce the Test Uncertainty Ratio (TUR). This principle requires the reference standard to be at least four times more accurate than the target Pressure Transmitter. A minimum 3:1 ratio is acceptable under certain relaxed frameworks. High TUR ensures your calibrator does not introduce artificial errors. It guarantees confidence in the final verification.
Preparation is a critical aspect of precise testing. You must execute a diaphragm pre-stressing step before recording any values. Apply 90% of the full span pressure to the device. Hold this pressure steady for exactly 30 seconds. Release the pressure and let the sensor normalize. This crucial step eliminates "cold-test" physical rigidity in the metal diaphragm. It drastically improves measurement repeatability during the actual test.
You must accurately map the 4-20mA output curve across the entire span. A simple two-point check misses hidden structural defects. We strongly recommend a standardized 5-point linearity check.
0% Span (4mA): Establish the precise baseline zero.
25% Span (8mA): Verify early curve linearity.
50% Span (12mA): Check the exact midpoint measurement.
75% Span (16mA): Confirm upper-range stability.
100% Span (20mA): Validate the upper range value (URV).
Sensors sometimes struggle to return to their original shape after experiencing high pressure. We call this phenomenon hysteresis. You must require bi-directional testing to detect it. Push the pressure upscale to 100%. Next, bring the pressure downscale back to 0%. Record the readings at each 25% interval during both directions. Compare the upscale and downscale numbers. They must remain nearly identical. This identifies mechanical lag inside the sensor.
Test Uncertainty Ratio (TUR) Summary Chart
Target Device Accuracy | Required Calibrator Accuracy (4:1 TUR) | Confidence Level |
|---|---|---|
1.0% of Span | 0.25% of Span | High (Standard Industrial) |
0.5% of Span | 0.125% of Span | High (Process Control) |
0.1% of Span | 0.025% of Span | Very High (Custody Transfer) |
Technicians often misunderstand the sensor trim function. We strictly warn against performing blind sensor trims on newly installed devices in the field. A full sensor trim alters the fundamental digital characterization of the unit. Manufacturers calibrate these sensors using complex, 100-point matrices. They perform this inside highly controlled environmental chambers. A quick field trim inadvertently overwrites this robust factory curve. It replaces optimal settings with a flawed single-point field adjustment.
Physical mounting orientation profoundly affects the internal sensing mechanism. This is especially true for low-pressure ranges. Gravity pulls lightly on the diaphragm depending on how you mount it. You must perform a local zero adjustment after bolting the device into its final position. This specific adjustment shifts the baseline to compensate for gravity. Skipping this step is non-negotiable. It guarantees a persistent offset error across your entire measuring span.
Various physical variables easily skew field calibrations. You must remain aware of these common environmental blind spots.
Head Height Differences: Liquid columns trapped between the reference gauge and the device create hydrostatic pressure. You must calculate and compensate for this height difference.
Incomplete Venting: You must fully vent residual process pressure before zeroing. Trapped gases shift the entire calibration baseline artificially.
Temperature Gradients: Sunlight hitting one side of the transmitter causes thermal expansion. Shield the device to ensure temperature stability during testing.
Aging analog systems require tedious manual adjustments via potentiometers. Upgrading to smart, digital HART-enabled transmitters simplifies the calibration process immensely. Digital devices allow technicians to perform internal Lower Range Value (LRV) and Upper Range Value (URV) adjustments electronically. This eliminates mechanical wear on adjustment screws. Smart electronics also improve digital data logging. They store historical performance metrics directly onboard the device.

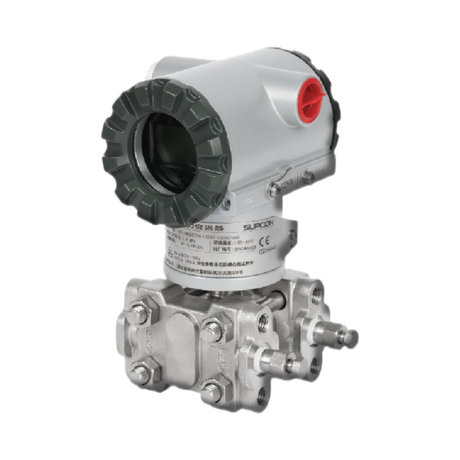

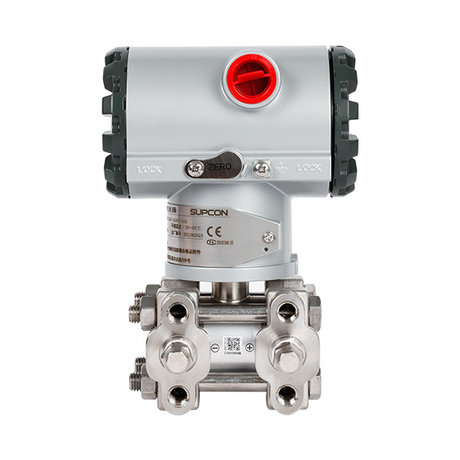

Many facilities actively look to reduce their manual calibration frequencies. The CXT Series Pressure Transmitter serves as an excellent decision-stage solution. It delivers engineered structural stability out of the box. The internal sensor housing resists extreme environmental vibration seamlessly. It features incredibly low long-term drift characteristics. Upgrading to such robust hardware minimizes ongoing maintenance interventions. Your technicians spend less time troubleshooting erratic loops.

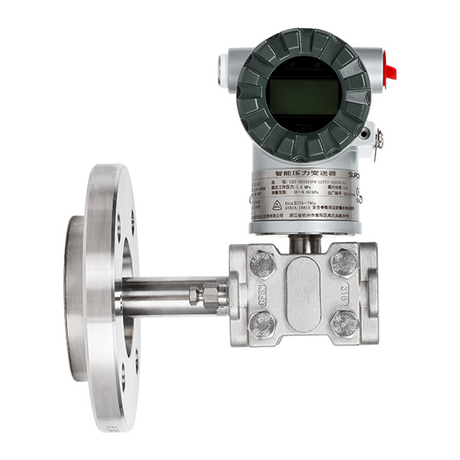

Hydrostatic pressure principles dictate how we measure fluids inside tanks. You typically deploy a Level Transmitter for these specific applications. You must make unique calibration adjustments for level sensing. The device needs to account for the specific gravity of the target fluid. Water behaves differently than heavy oils. You also need to configure the calibration for wet-leg or dry-leg installations. These reference legs apply constant back-pressure. You must suppress or elevate the zero point accordingly to ensure accurate tank level readings.
Robust pressure calibration serves as a strategic defense against process inefficiency. It is far more than a routine maintenance checklist item. Poorly calibrated instruments drain your profitability through wasted materials and excess energy use. We highly recommend adopting a proactive, two-pronged approach. First, standardize your internal calibration SOPs immediately. Mandate 5-point linearity checks and enforce a minimum 3:1 TUR. Second, invest in structurally stable instrumentation to maximize your overall uptime.
Take action today to secure your process reliability. Review your current instrument drift records thoroughly. Identify the worst-performing control loops in your facility. Consult with metrology specialists to evaluate these legacy sensors. Determine whether you should continue recalibrating them or replace them entirely. High-stability digital alternatives offer unparalleled accuracy and peace of mind.
A: A zero adjustment simply shifts the entire baseline measurement up or down. It accounts for physical installation posture and minor mounting offsets. A sensor trim fundamentally alters the digital characterization of the sensor itself. You should avoid field trims unless absolutely necessary, as they overwrite the precise factory calibration curve.
A: You must safely release all trapped process pressure to atmospheric pressure. If you leave residual pressure inside the manifold, the sensor reads it as a false zero. This mistake creates a permanent, systematic offset error. The error will negatively skew readings across the entire 4-20mA measurement span.
A: Field checks provide excellent convenience for active industrial processes. However, they cannot replace laboratory calibration for critical custody transfer devices. ISO 17025 accredited bench calibrations offer strict environmental control. Laboratories deliver significantly lower measurement uncertainty because they eliminate field variables like temperature swings and pipe vibration.
A: Earth's gravity varies slightly depending on your exact geographical location and elevation. High-end deadweight testers rely on physical masses to generate reference pressures. You must compensate for local gravity variations mathematically. Failing to adjust for local gravity introduces measurement errors up to 0.4% during highly precise calibrations.
